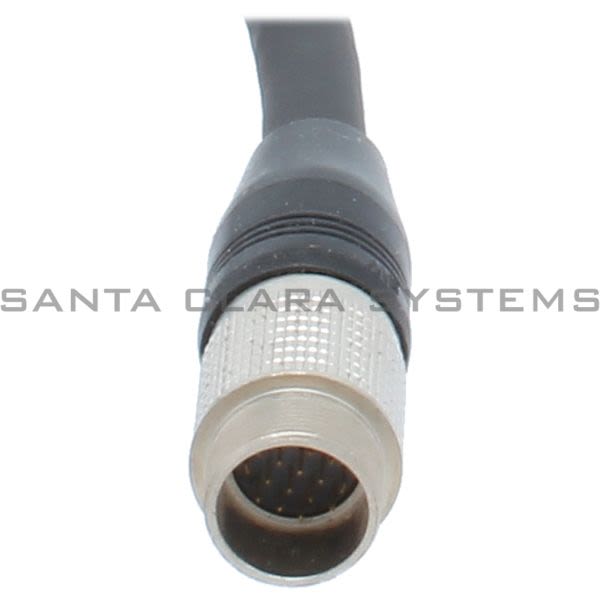

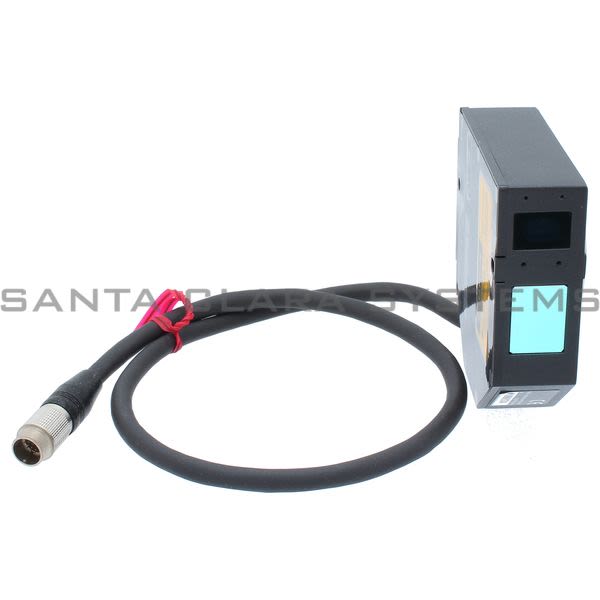

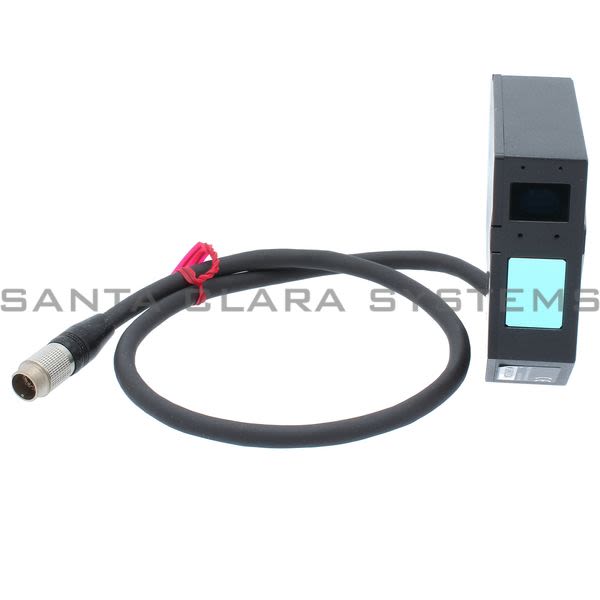

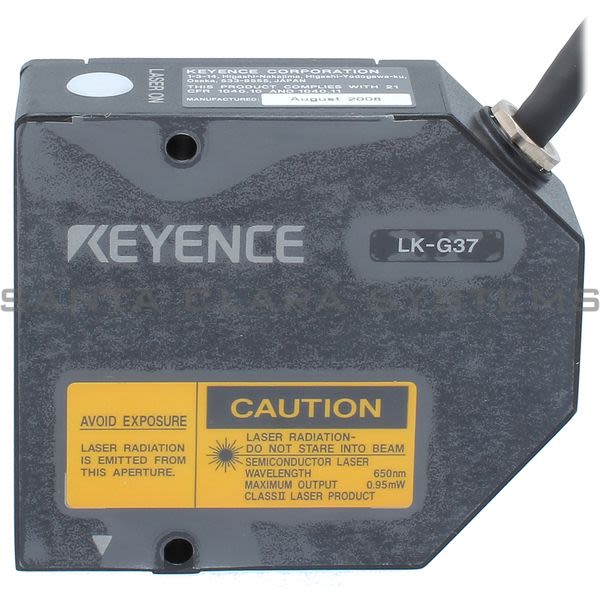

- Description: Laser Sensor | High-Accuracy
- Weight: Approx 280 g (including the cable)
- Footnotes: *1 This value was taken when measuring a KEYENCE standard target (ceramic) in standard mode. *2 Consult your nearest KEYENCE representative for the Class IIIa type with increased repeatability. *3 These values were taken when measuring a KEYENCE standard target (SUS) at a reference distance and with the number of averaging measurements set to 4,096
- Material: Aluminum die-cast
- Ambient temperature: 0 to 50C 32 to 122F
- Relative humidity: 35 to 85% RH (No condensation)
- Reference distance: 30 mm 1.18"(Diffuse reflection), 23.5 mm 0.93"(Specular reflection)
- Measuring range: 5 mm 0.2"(Diffuse reflection),4.5 mm 0.18"(Specular reflection)
- Light source - Type: Red semiconductor laser
- Light source - Wavelength: 655nm (visible light) Class 2 (JIS C6802)
- Light source - Laser Class: Class II (FDA (CDRH) Part 1040.10), Class 2 (IEC 60825-1)
- Light source - Control output: 0.95 mW maximum
- Spot diameter (at standard distance): Approx. 30 x 850 m 0.001181 x 0.0335"
- Linearity: 0.05% of F.S. (F.S.= 5 mm 0.2")*1
- Repeatability: 0.05 m*2*3
- Sampling cycle: 20/50/100/200/500/1000 ?s (Selectable from 6 levels)
- LED display: Near the center of the measurement: Green lights Within the measurement area: Orange lights Outside the measurement area: Orange flashing
- Temperature characteristics: 0.01% of F.S./C (F.S.= 5 mm 0.2")
- Environmental resistance - Enclosure rating: IP67 (IEC60529)
- Environmental resistance - Operating ambient luminance: Incandescent lamp or fluorescent lamp: 10000 lux max.
- Environmental resistance - Vibration: 10 to 55 Hz, double amplitude 1.5 mm 0.06"; two hours in each direction of X, Y, and Z
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LK-G37 . Santa Clara Systems carries 2,098 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
