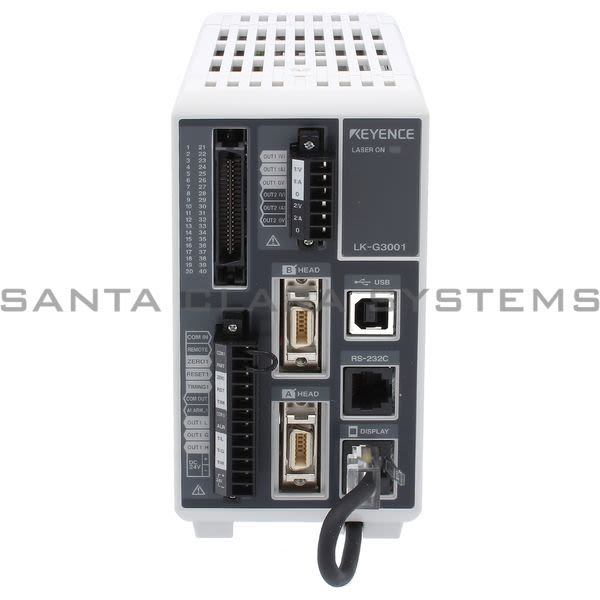

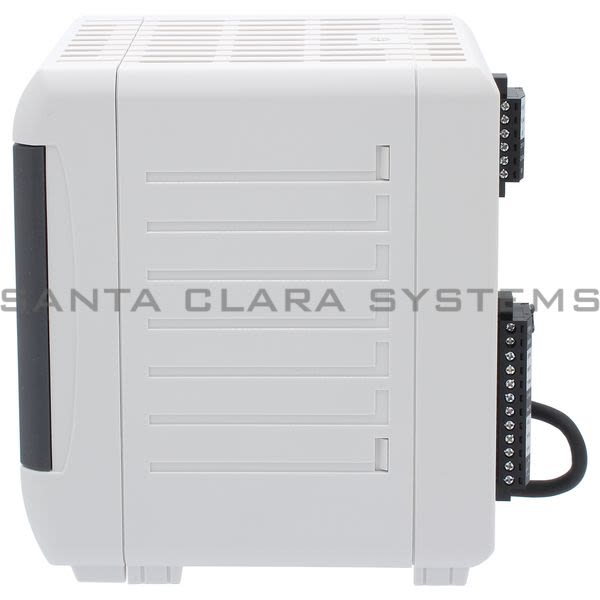

LK-G3001V

Keyence - Laser Processor for CCD

Current response time:

By 5AM PT on Monday

Emergency?

Description: Laser Processor for CCD
Weight: Approx. 480 g
Footnotes: *1 The rating of non-voltage input: 1 V or less ON voltage, 0.6 mA or less OFF current. *2 The rating of the NPN open-collector: 50 mA max. (40 V max.), residual voltage of 1 V max.
Type: All-in-one model
Ambient temperature: 0 to 50C 32 to 122F, No condensation
Relative humidity: 35 to 85%, No condensation

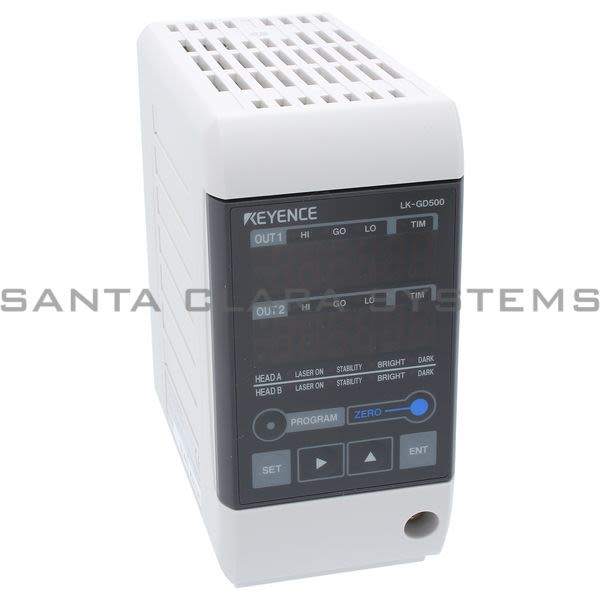

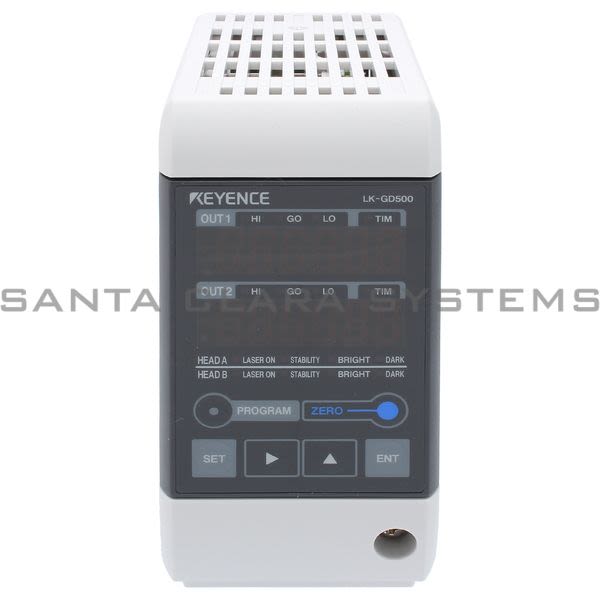

Separate type: LK-G3001/LK-GD500
Display - Head compatibility: All LK-G sensor heads are compatible
Display - Number of connectable sensors: Maximum of 2 units
Display - Minimum display unit: 0.01 m
Display - Display range: 9999.99 mm to 9999.99 ?m (Selectable from six levels)
Display - Refresh rate: 10 times/sec
Terminal block - Analog voltage output: 10 V 2 outputs, output impedance: 100 ?
Terminal block - Analog current output: 4 to 20 mA 2 outputs, maximum load resistance: 350 ?
Terminal block - Timing input: For OUT1, non-voltage input*1
Terminal block - Reset input: For OUT1, non-voltage input*1
Terminal block - Auto-zero input: For OUT1, non-voltage input*1
Terminal block - Laser remote interlock input: Non-voltage input*1

Terminal block - Comparator output: For OUT1, NPN open-collector output*2
Terminal block - Alarm output: For OUT1, NPN open-collector output*2(N.C.)
Expansion connector - Timing input: For OUT2, non-voltage input*1
Expansion connector - Reset input: For OUT2, non-voltage input*1
Expansion connector - Auto-zero input: For OUT2, non-voltage input*1
Expansion connector - Program switching input: Non-voltage input*1 3 inputs
Expansion connector - Laser-Off input: For Head A/Head B, non-voltage input*1
Expansion connector - Comparator output: For OUT2, NPN open-collector output*2
Expansion connector - Alarm output: For OUT2, NPN open-collector output*2(N.C.)
Expansion connector - Binary - Binary output: Measured data output (21 bits), OUT1/OUT2 selectable, NPN open-collector output*2
Expansion connector - Binary - Strobe output: NPN open-collector output*2
Expansion connector - Binary - Binary selector output: NPN open-collector output*2
Expansion connector - Binary - Binary selector input: Non-voltage input*1
RS-232C interface: Measured data output and control input/output (Maximum baud rate: 115,200 bps, selectable)
USB interface: In conformity with USB Revision 2.0 Full speed (USB1.1 compatible)
Major functions: 2 OUT simultaneous measurement, Operation, Averaging, Filter, Calibration, Measurement, AUTO ZERO, Sampling frequency setting, Mutual interference prevention, Data storage, 8-program memory, ECO mode, ABLE setting, Target setting, ABLE tuning, Selection of measurement surface of transparent target, Connection of setting support software, Selectable head-mounting, etc.
Power supply voltage: 24 VDC 10%, Ripple: 10% (P to P) or less
Current consumption: 500 mA or less with 1 head/600 mA or less with 2 heads

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LK-G3001V . Santa Clara Systems carries 2,098 items from Keyence.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
