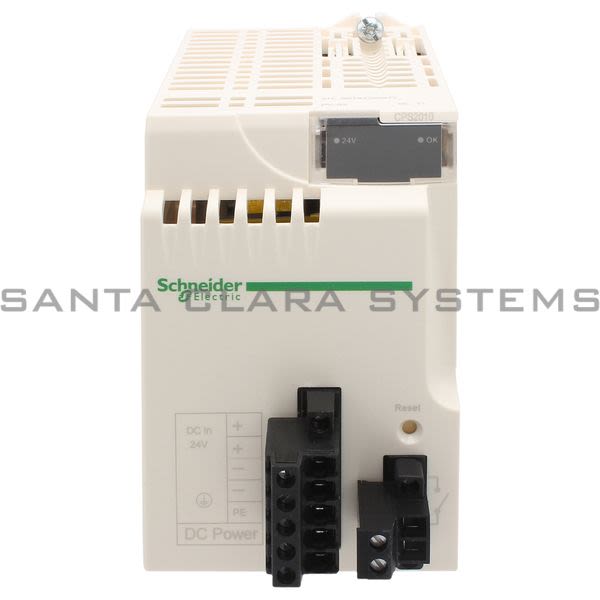

• Modicon BMXCPS2010 power supply module X80 - 24 V DC - 16.8 W Product Image

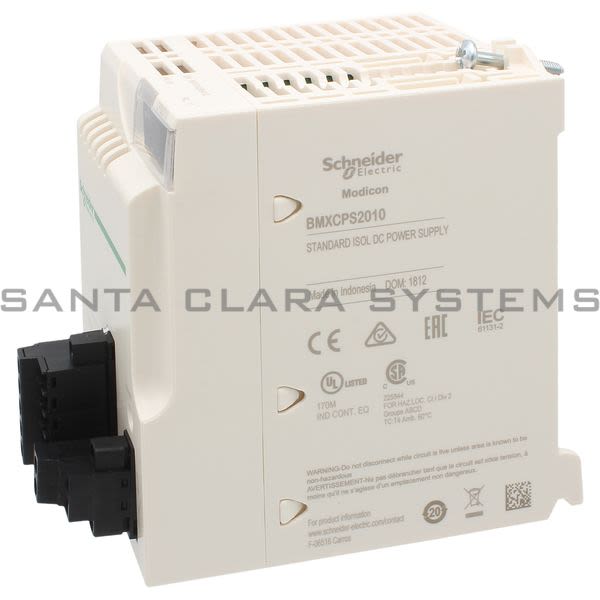

  • Modicon BMXCPS2010 power supply module X80 - 24 V DC - 16.8 W Product Image

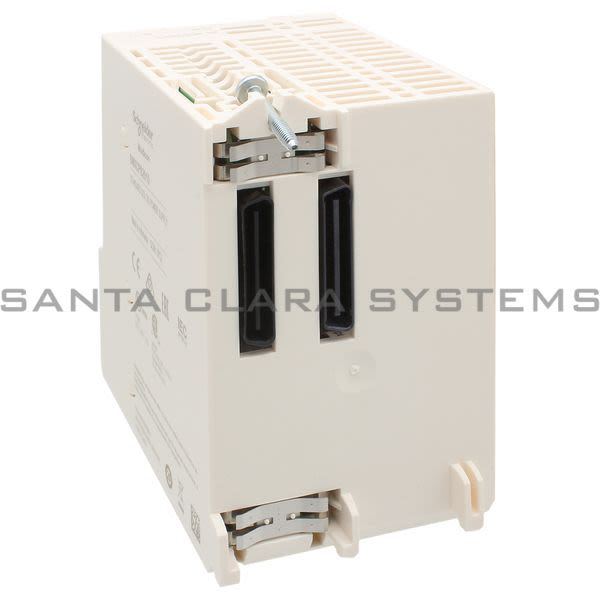

  • Modicon BMXCPS2010 power supply module X80 - 24 V DC - 16.8 W Product Image

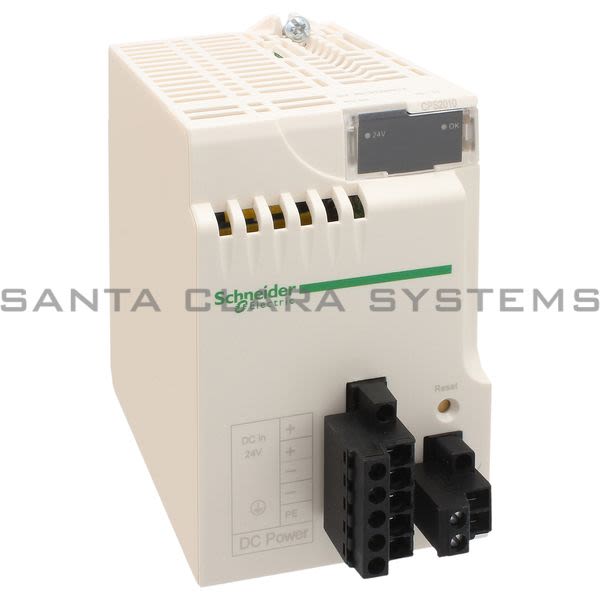

  • Modicon BMXCPS2010 power supply module X80 - 24 V DC - 16.8 W Product Image
  • Modicon BMXCPS2010 Barcode

BMXCPS2010

Product Summary:

  • Range of product: Modicon X80
  • Product weight: 0.64 lb(US) (0.29 kg)
  • Protective treatment: TC
  • Relative humidity: 5...95 % without condensation
  • Primary voltage limit: 18...31.2 V
Get a Quote

Current response time:

4 Minutes 51 Seconds
  • Description: power supply module X80 - 24 V DC - 16.8 W
  • Range of product: Modicon X80
  • Product weight: 0.64 lb(US) (0.29 kg)
  • Electrical connection: 1 connector 2 pin(s) alarm relay, 1 connector 5 pin(s) line supply, protective earth, 24 V DC input sensor
  • Protective treatment: TC
  • Protection type: Internal fuse not accessible primary circuit, Overload protection secondary circuit, 24 V sensor power supply, Overvoltage protection secondary circuit, 24 V sensor power supply, Short-circuit protection secondary circuit, 24 V sensor power supply
  • Standards: CSA C22.2 No 61010-2-201, EN/IEC 61131-2, EN/IEC 61010-2-201, UL 61010-2-201
  • Relative humidity: 5...95 % without condensation
  • Operating altitude: 0...6561.68 ft. (0...2000 m), 2000...5000 m (with derating factor)
  • Primary voltage limit: 18...31.2 V
  • Immunity to micro breaks: <= 1 ms
  • Product or component type: Power supply module
  • Input current: 1 A 24 V
  • Dielectric strength: 1500 V primary/ground, 1500 V primary/secondary
  • Product compatibility: Not compatible with BMEXBP..02
  • Inrush current: 30 A 24 V
  • Vibration resistance: 3 gn
  • Primary voltage: 24 V isolated
  • I²t on activation: <= 0.6 A.s 24 V
  • IP degree of protection: IP20
  • Supply circuit type: DC
  • It on activation: <= 0.15 A.s 24 V
  • Product certifications: EAC, Merchant Navy, CSA, CE, UL, RCM
  • Secondary power: 16.8 W 24 V DC I/O module power supply and processor, 8.3 W 3.3 V DC I/O module logic power supply
  • Current at secondary voltage: 0.7 A 24 V DC I/O module power supply and processor, 2.5 A 3.3 V DC I/O module logic power supply
  • Ambient air temperature for storage: -40...185 F (-40...85 C)
  • power dissipation in W: <= 8.5 W
  • Ambient air temperature for operation: 32...140 F (0...60 C)
  • status LED: 1 LED green rack voltage OK
  • Control type: RESET push-button cold restart
  • Max cable distance between devices: 20 m power supply cable copper 1.5 mm, 30 m power supply cable copper 2.5 mm
  • Insulation resistance: >= 10 mOhm primary/secondary, >= 10 mOhm primary/ground
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BMXCPS2010 . Santa Clara Systems carries 1,951 items from Modicon.
