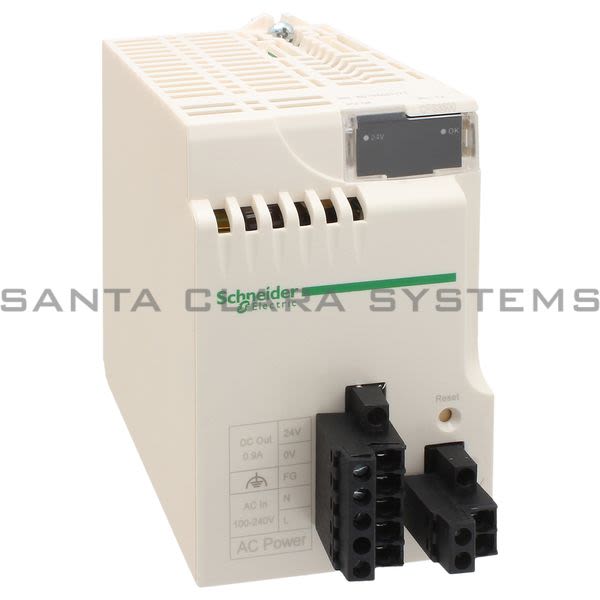

• Modicon BMXCPS3500 power supply module X80 - 100..240 V AC - 36 W Product Image

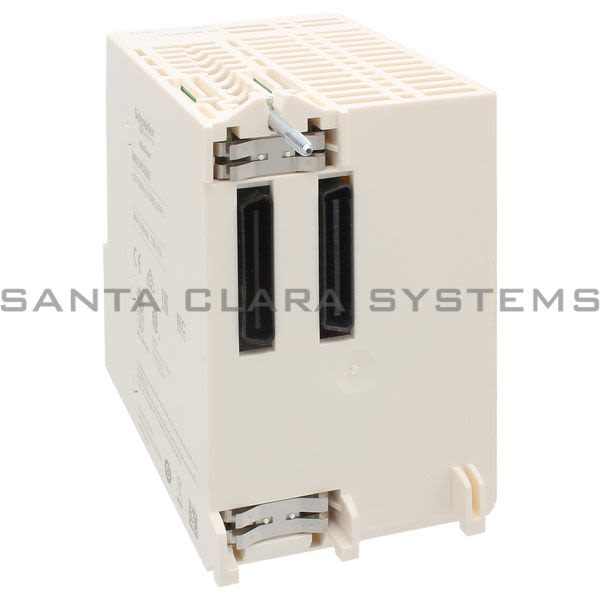

  • Modicon BMXCPS3500 power supply module X80 - 100..240 V AC - 36 W Product Image

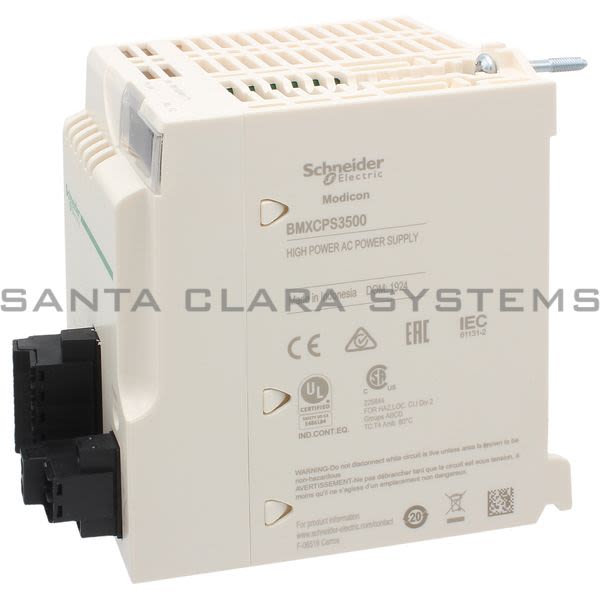

  • Modicon BMXCPS3500 power supply module X80 - 100..240 V AC - 36 W Product Image

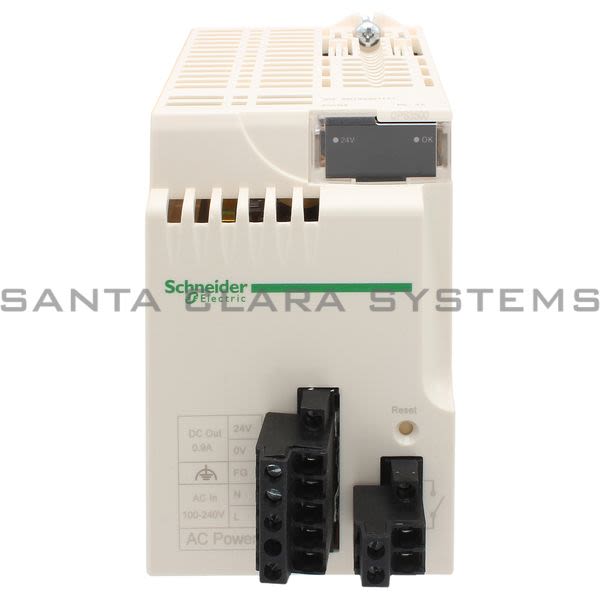

  • Modicon BMXCPS3500 power supply module X80 - 100..240 V AC - 36 W Product Image
  • Modicon BMXCPS3500 Barcode

BMXCPS3500

Product Summary:

  • Range of product: Modicon X80
  • Product weight: 0.79 lb(US) (0.36 kg)
  • Protective treatment: TC
  • Relative humidity: 5...95 % without condensation
  • Primary voltage limit: 85...264 V
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: power supply module X80 - 100..240 V AC - 36 W
  • Range of product: Modicon X80
  • Product weight: 0.79 lb(US) (0.36 kg)
  • Electrical connection: 1 connector 2 pin(s) alarm relay, 1 connector 5 pin(s) line supply, protective earth, 24 V DC input sensor
  • Protective treatment: TC
  • Standards: CSA C22.2 No 61010-2-201, UL 61010-2-201, EN/IEC 61010-2-201, EN/IEC 61131-2
  • Protection type: Internal fuse not accessible primary circuit, Overload protection secondary circuit, Overvoltage protection secondary circuit, Short-circuit protection secondary circuit
  • Relative humidity: 5...95 % without condensation
  • Operating altitude: 0...6561.68 ft. (0...2000 m), 2000...5000 m (with derating factor)
  • Primary voltage limit: 85...264 V
  • Immunity to micro breaks: <= 1 ms
  • Product or component type: Power supply module
  • Network frequency: 50/60 Hz
  • Dielectric strength: 1500 V primary/ground, 1500 V primary/secondary I/O module logic power supply, 1500 V primary/secondary I/O module power supply and processor, 2300 V primary/secondary sensor power supply, 500 V 24 V sensor output/ground
  • Product compatibility: Not compatible with BMEXBP..02
  • Network frequency limits: 47...63 Hz
  • Vibration resistance: 3 gn
  • Primary voltage: 100...240 V
  • Apparent power: 0.07 kVA
  • IP degree of protection: IP20
  • Supply circuit type: AC
  • Input current: 0.52 A 240 V, 1.04 A 115 V
  • Product certifications: UL, Merchant Navy, CE, RCM, CSA, EAC
  • Secondary power: 15 W 3.3 V DC I/O module logic power supply, 21.6 W 24 V DC sensor power supply, 31.2 W 24 V DC I/O module power supply and processor
  • Inrush current: <= 30 A 120 V, <= 60 A 240 V
  • I²t on activation: <= 1 A.s 120 V, <= 3 A.s 240 V
  • Ambient air temperature for storage: -40...185 F (-40...85 C)
  • It on activation: <= 0.05 A.s 120 V, <= 0.07 A.s 240 V
  • Ambient air temperature for operation: 32...140 F (0...60 C)
  • Current at secondary voltage: 0.9 A 24 V DC sensor power supply, 1.3 A 24 V DC I/O module power supply and processor, 4.5 A 3.3 V DC I/O module logic power supply
  • power dissipation in W: <= 8.5 W
  • status LED: 1 LED green rack voltage OK, 1 LED green sensor voltage
  • Control type: RESET push-button cold restart
  • Insulation resistance: >= 100 MOhm primary/ground, >= 100 MOhm primary/secondary
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on BMXCPS3500 . Santa Clara Systems carries 1,951 items from Modicon.
  • Power Supply Module X80 - 100..240 V Ac - 36 W
