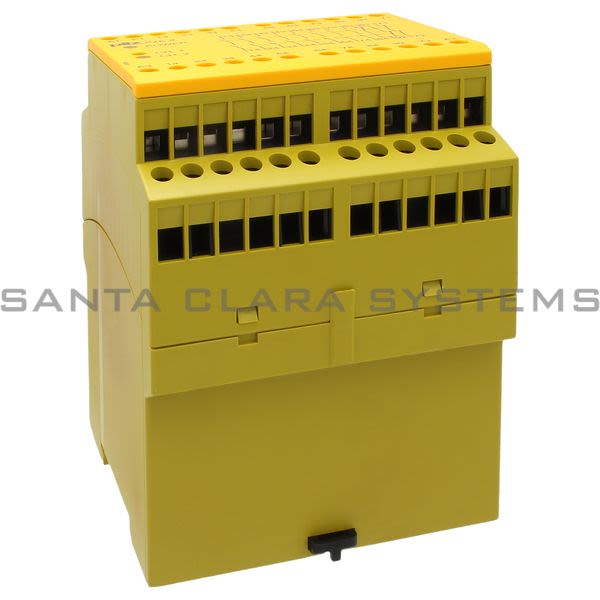

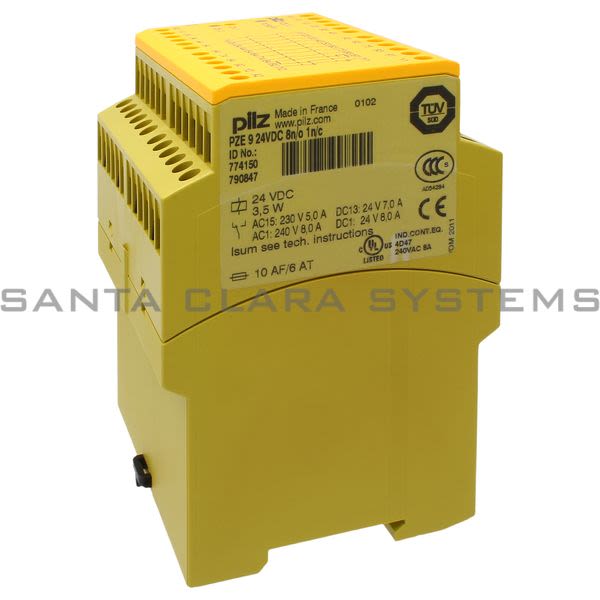

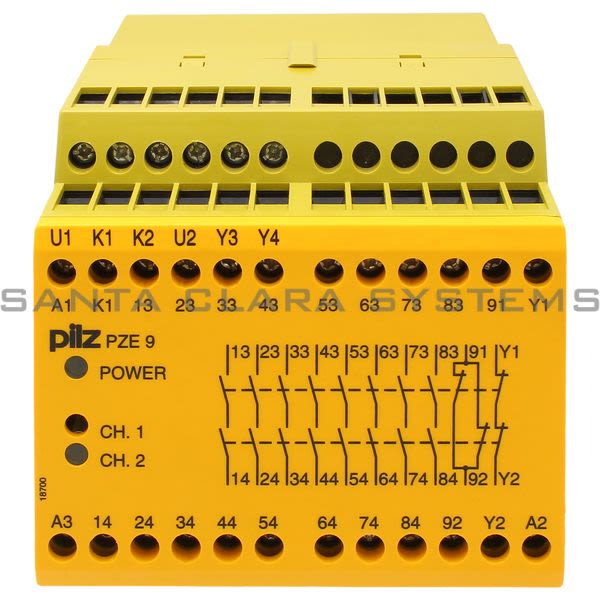

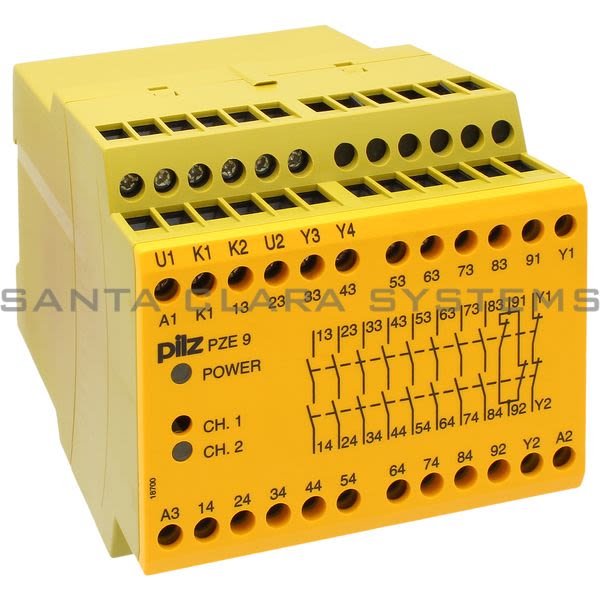

- Description: Safety relay (standalone) Inputs: ability to detect shorts across contacts Outputs: 8 N/O, 1 N/C UB 24 V DC, width: 90 m
- Gross weight:: 460 g
- Net weight:: 450 g
- Ambient temperature:: -10 - 55 C
- Height dimension:: 87.0 mm
- Width dimension:: 90.0 mm
- Depth dimension:: 121.0 mm
- Supply voltage (V):: 24,0
- Supply voltage type:: DC
- Terminal type:: Screw terminal
- Terminal style:: fixed
- Application options:: Instantaneous contact expansion
- Operating modes:: Single-channel, Dual-channel, Detection of shorts across contacts, without detection of shorts across contacts
- Approvals:: CE, cULus Listed, EAC (Eurasian), TV, CCC
- Standards:: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
- Number of instantaneous safety contacts:: 8
- Number of auxiliary contacts:: 1
- Max. current at DC13 I (6 cycles/min):: 7.0 A
- Voltage at AC15:: 230 V
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on PZE924VDC8N-O1N-C-774150 . Santa Clara Systems carries 329 items from Pilz.
- Contact Block For Contact Expansion + Amplification In Connection With Safety-Related Control Components.
- Safety Relay (Standalone) Inputs: Ability To Detect Shorts Across Contacts Outputs: 8 N/o
- 1 N/c Ub 24 V Dc
- Width: 90 Mm
Alternates
- 774150
- PZE9774150
- PZE 9 24VDC 8N/O 1N/C
- PZE-9-24VDC-8N/O-1N/C-774150
