LXM62PD84A11000

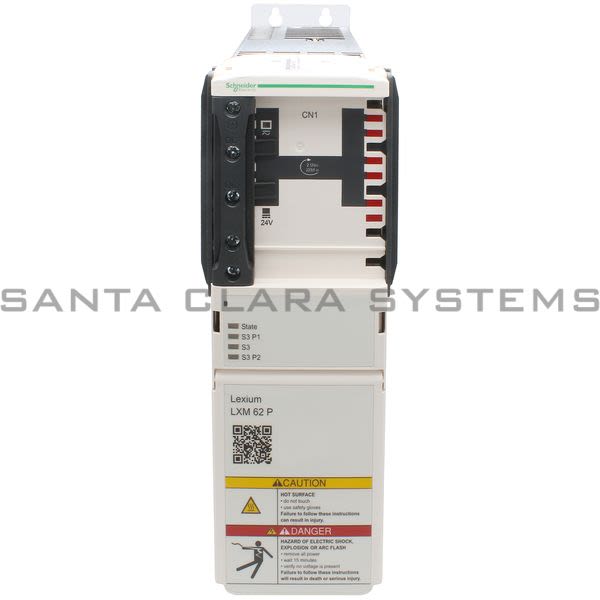

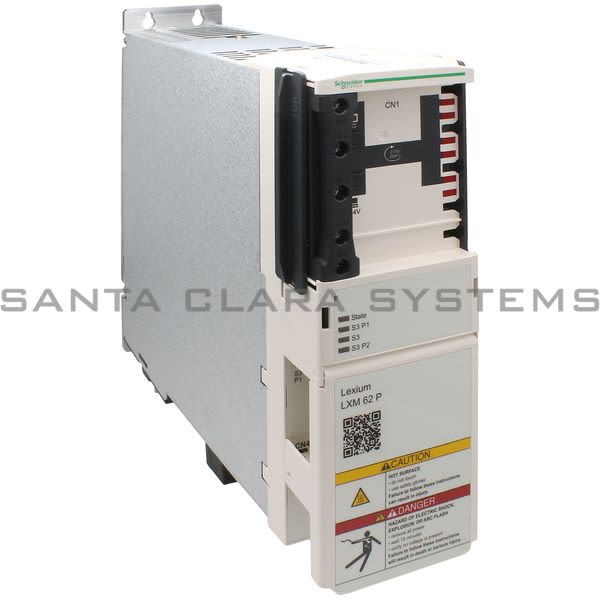

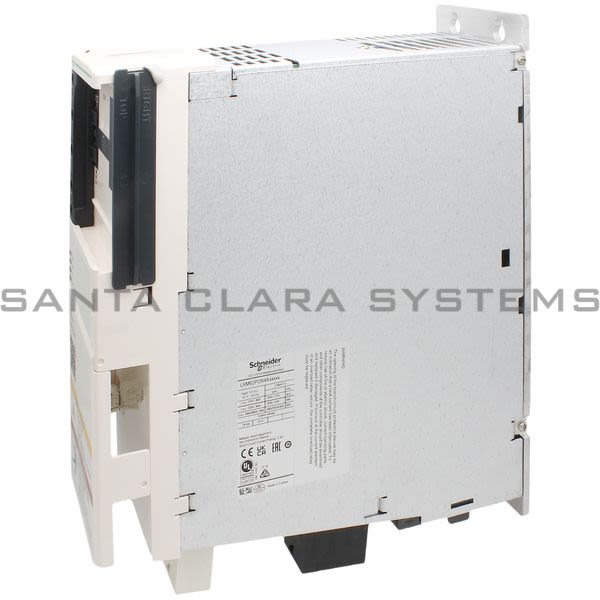

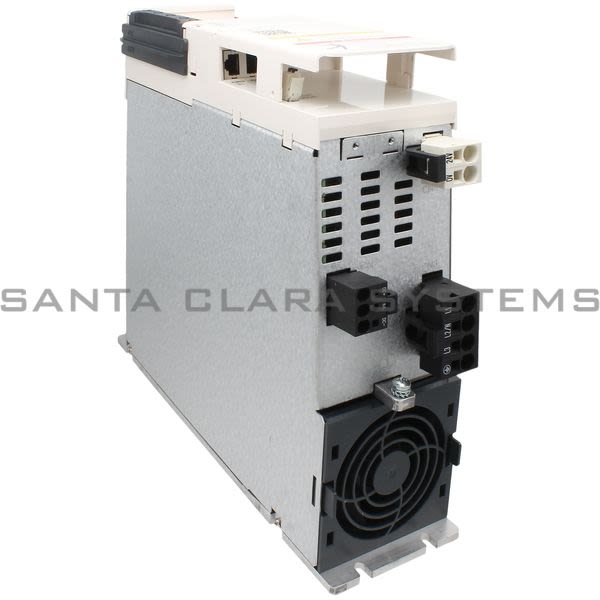

Telemecanique - Lexium LXM 62 power supply drive - 42/84 A

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Lexium LXM 62 power supply drive - 42/84 A
Product weight: 13.89 lb(US) (6.3 kg)
Range of product: PacDrive 3
IP degree of protection: IP20 with plugged-in connectors conforming to EN/IEC 60721-3-3
Standards: EN/IEC 61800-5-1, UL 508C, EN/IEC 61800-3
Width: 3.52 in (89.5 mm)
Height: 12.2 in (310 mm)
Depth: 10.63 in (270 mm)
[Uc] control circuit voltage: 24 V DC (tolerance: - 20...25 %)
Vibration resistance: 10 m/s conforming to EN/IEC 60721-3-3
Shock resistance: 100 m/s in operation conforming to EN/IEC 60721-3-3, 300 m/s during transport conforming to EN/IEC 60721-3-3
[Us] rated supply voltage: 400 V three phase (tolerance: - 10...10 %), 230 V three phase (tolerance: - 10...10 %), 230 V single phase (tolerance: - 10...10 %)
Overvoltage category: III conforming to EN 61800-5-1
Output type: 2 relays volt-free contacts
Supply circuit type: AC
Product or component type: Power supply
Product certifications: UL, CSA
Component name: LXM62
Supply frequency: 50/60 Hz +/- 5 %

Power supply output current: 84 A
Bus voltage: 270...700 V
Pollution degree: 2 conforming to EN/IEC 60721-3-3
maximum DC bus voltage: 860 V
Environmental characteristic: 3K3 conforming to IEC 60721-3-3, RH:5...85 %
Maximum cable capacity: 1.36 mF
Ambient air temperature for operation: 41...104 F (5...40 C), 104...131 F (40...55 C) with current derating of 2 % per C
[In] rated current: 21 A single phase AC, 42 A three phase AC
Ambient air temperature for storage: -13...131 F (-25...55 C)
Peak current: 42 A single phase AC for 1 s, 84 A three phase AC for 1 s
Nominal power: 22.1 kW at 400 V three phase AC, 26.6 kW at 480 V three phase AC
Maximum power: 44.2 kW at 400 V three phase AC, 53.2 kW at 480 V three phase AC
Holding time: 15 min
Braking resistance: 15 Ohm
Permanent braking power: 400 W
Maximum braking power: 46 kW
Physical interface: SERCOS III
Marking: CE
Safety level: Can reach SIL 2 conforming to EN 61508, Can reach PL d/category 3 conforming to EN/ISO 13849-1

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on LXM62PD84A11000 . Santa Clara Systems carries 10,300 items from Telemecanique.
