RE48AML12MW

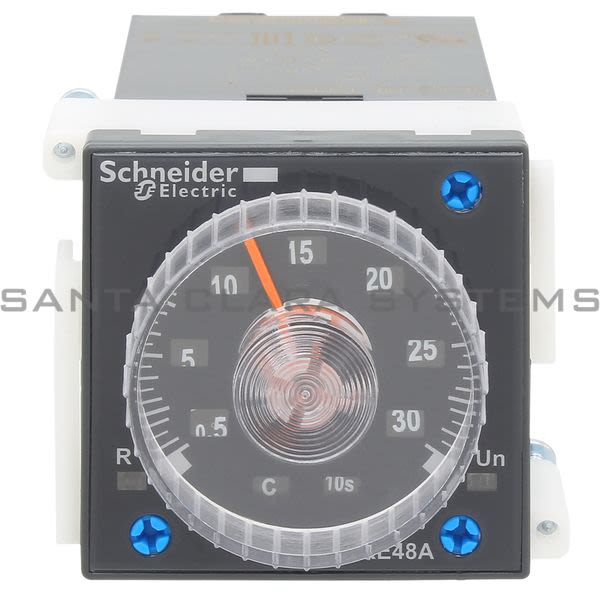

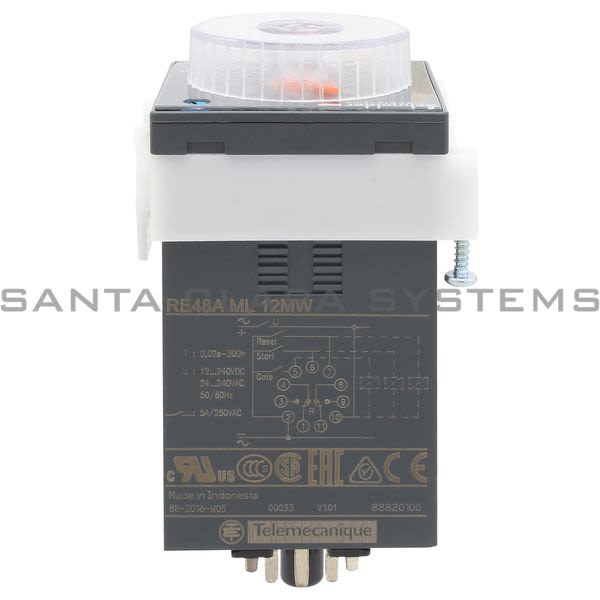

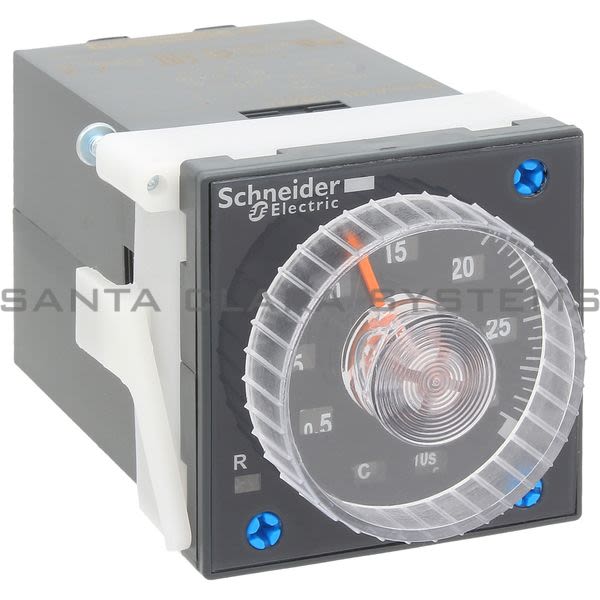

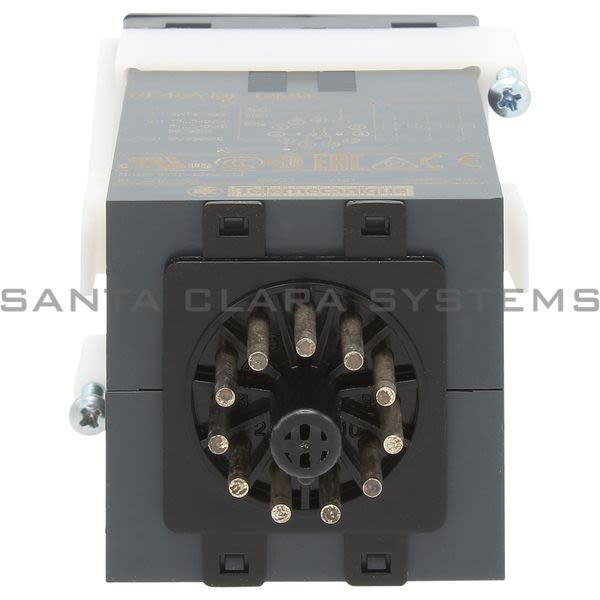

Telemecanique - time delay relay 2 functions - 0.02 s..300 h - 24..240 V AC - 2 OC

Current response time:

By 5AM PT on Friday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: time delay relay 2 functions - 0.02 s..300 h - 24..240 V AC - 2 OC
Product weight: 0.31 lb(US) (0.14 kg)
Range of product: Zelio Time
IP degree of protection: IP40 housing conforming to IEC 60529, IP50 front face conforming to IEC 60529
Standards: 89/336/EEC, IEC 60669-2-3, 73/23/EEC, 93/68/EEC, EN 50081-1/2, EN 50082-1/2, IEC 61812-1
Mechanical durability: 30000000 cycles
Mounting support: Base mounted: socket, Panel mounted: system supplied with the product
Vibration resistance: 0.35 mm 10...55 Hz conforming to IEC 60068-2-6
Electrical durability: 100000 cycles
Electrical connection: 11 pin plug-in sub-base
[Us] rated supply voltage: 24...240 V AC/DC 50/60 Hz
Relative humidity: 93 % without condensation conforming to IEC 60068-2-3
Control type: Selector switch on front panel
Breaking capacity: 1250 VA
Housing material: Self-extinguishing
Product front plate size: 48 x 48 mm
Humidity drift: +/- 0.05 %/%RH of the maximum setting value conforming to IEC 61812-1
Product or component type: Electronic timing relay
Immunity to micro breaks: < 10 ms
Dielectric strength: 1 kV at 1 mA/1 minute conforming to IEC 61812-1
Discrete output type: Relay
Repeat accuracy: +/- 0.2 % of the maximum setting value conforming to IEC 61812-1
Protection against electric shocks: 4 kV class III conforming to IEC 60664-1, 4 kV class III conforming to IEC 61812-1
Contacts type and composition: 2 C/O timed contacts AgNi (cadmium free)
Temperature drift: +/- 0.02 %/C of the maximum setting value conforming to IEC 61812-1
Component name: RE48A
Voltage drift: +/- 0.2 %/V of the maximum setting value at 48...240 V, +/- 1 %/V of the maximum setting value at 24...48 V

Product certifications: cULus, UL, GL, CSA, C-Tick
Time delay type: B, A, Di, C
Setting accuracy of time delay: +/- 5 % of full scale at 25 C conforming to IEC 61812-1
Ambient air temperature for storage: -40...158 F (-40...70 C)
Time delay range: 5...300 s, 0.05...3 s, 0.5...30 h, 2...120 s, 0.2...12 s, 2...120 h, 5...300 min, 0.2...12 h, 0.5...30 s, 0.2...12 min, 5...300 h, 2...120 min, 0.02...1.2 s, 0.5...30 min
Minimum pulse duration: 20 ms
Ambient air temperature for operation: -4...122 F (-20...50 C)
Reset time: >= 25 ms on de-energisation
Voltage range: 0.85...1.1 Us AC, 0.9...1.1 Us DC
Pick up duration: 55 ms
Line Rated Current: 5:00 AM
On-load factor: 100%
power consumption in VA: 1.1 VA at 24 V, 4.8 VA at 240 V
Resistance to electrostatic discharge: 6 kV at in contact conforming to EN/IEC 61000-4-2 level 3, 8 kV at in air conforming to EN/IEC 61000-4-2 level 3
power consumption in W: 1.7 W at 240 V, 0.5 Wat 24 V
Resistance to electromagnetic fields: 10 V/m 26 MHz to 1 GHz conforming to IEC 61000-4-3 level 3
Resistance to fast transients: 2 kV capacitive connecting clip conforming to EN/IEC 61000-4-4 level 4, 4 kV direct conforming to EN/IEC 61000-4-4 level 4
Minimum switching current: 100 mA
Immunity to radio electric fields: 10 V at 0.15...80 MHz conforming to EN/IEC 61000-4-6 level 3
Maximum switching current: 5:00 AM
Immunity to voltage dips: 30 % for 10 ms conforming to EN/IEC 61000-4-11, 60 % for 100 ms conforming to EN/IEC 61000-4-11, 95 % for 5 s conforming to EN/IEC 61000-4-11
Maximum switching voltage: 250 V AC/DC
Disturbance radiated/conducted: Class B at 0.15...30 MHz conforming to EN 55022 (EN 55011 group 1)
Output voltage: 240 V at 5 A AC-12, 30 V at 2 A DC-13, 240 V at 1.5 A AC-15
Marking: CE
Surge withstand: 1 kV differential mode conforming to IEC 61000-4-5 level 3, 2 kV common mode conforming to IEC 61000-4-5 level 3
Local signaling: 1 LED yellow output relay state, LED indicator green flashing: relay energized timing in progress, LED indicator green on steady: relay energized, no timing in progress
