VCDN12

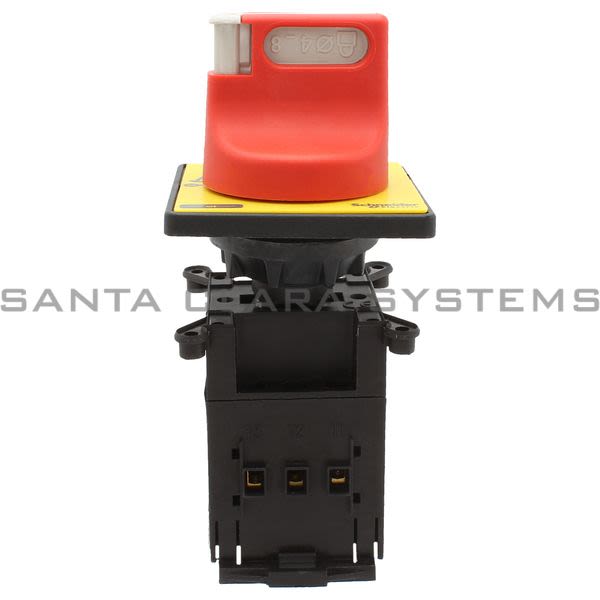

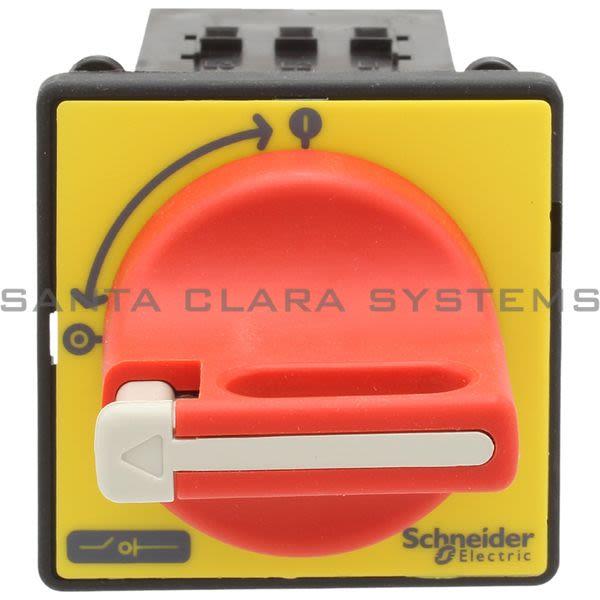

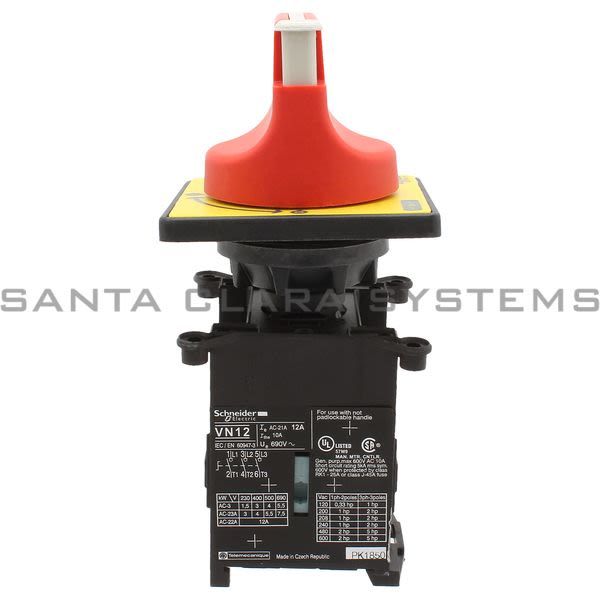

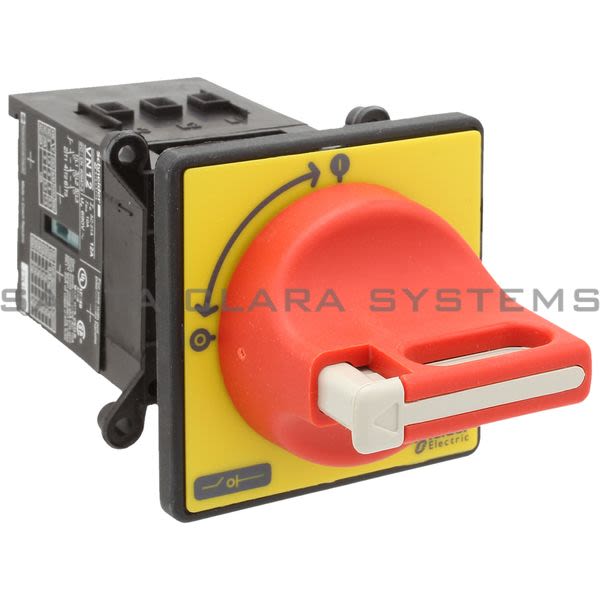

Telemecanique - TeSys Mini-Vario - emergency stop switch disconnector - 12 A - on door

Current response time:

By 5AM PT on Monday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: TeSys Mini-Vario - emergency stop switch disconnector - 12 A - on door
Product weight: 0.39 lb(US) (0.177 kg)
IP degree of protection: IP65
Standards: IEC 60947-3
Device short name: VCDN
Width: 2.36 in (60 mm)
Height: 2.36 in (60 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 6 kV
Mechanical durability: 50000 cycles
Tightening torque: Power circuit: 6.19 lbf.in (0.7 N.m) - on screw clamp terminals
Connections - terminals: Power circuit: screw clamp terminals cable 0.01 in (4 mm) - cable stiffness: flexible - with cable end cable end, Power circuit: screw clamp terminals cable 0.01 in (4 mm) - cable stiffness: solid -
Range: TeSys
Mounting support: Handle mounting on door, Switch mounting on door
[Ith] conventional free air thermal current: 12:00 AM
System Voltage: 690 V AC 50/60 Hz
Product name: TeSys Mini-VARIO
Electrical durability: 30000 cycles DC-1...5, 50000 cycles AC-21
[Ie] rated operational current: 8.1 A (AC-23)at 400 V
Poles description: 3P
Control type: Rotary handle
Breaking capacity: 120 kA 400 V AC-21A, 120 kA 400 V AC-22A, 120 kA 400 V AC-23A
Handle color: Red

Marking: 0 - 1
Product certifications: GL, CCC, UL, CSA
Fixing mode: Hole with 0.89 in (22.5 mm)for handle
Product or component type: Emergency stop switch disconnector
Performance level: Standard
Mechanical robustness: Vibrations 10...150 Hz 5 gn IEC 60068-2-6, Shocks 11 ms 15 gn IEC 60068-2-27
Ambient air temperature for operation: -4...122 F (-20...50 C)
Contacts type and composition: 3 NO
[Ithe] conventional enclosed thermal current: 10:00 AM
Fire resistance: 1760 F (960 C) conforming to IEC 60695-2-1
Network type: DC, AC
rated operational power in W: 3 kW 230...240 V (AC-23A), 4 kW 400...415 V (AC-23A), 5.5 kW 500 V (AC-23A), 7.5 kW 690 V (AC-23A), 1.5 kW 230...240 V (AC-3), 3 kW 400...415 V (AC-3), 4 kW 500 V (AC-3), 4 kW 690 V (AC-3)
Rotary handle mounting style: Direct
Intermittent duty class: 30
Making capacity: 120 A 400 V (AC-21A), 120 A 400 V (AC-22A), 120 A 400 V (AC-23A)
Handle front plate color: Yellow
[Icm] rated short-circuit making capacity: 0.5 kA 400 V at Ipeak
Rotary handle padlocking: 1 to 3 padlocks 0.16...0.31 in (4...8 mm)
[Icw] rated short-time withstand current: 140 A 400 V during 1 s
Rated conditional short-circuit current: 6 kA 400 V - associated fuse 12 A aM, 6 kA 400 V - associated fuse 12 A gG
Device composition: Switch, Handle
Suitability for isolation: Yes
Base dimension: 60 x 60 mm
