VN12

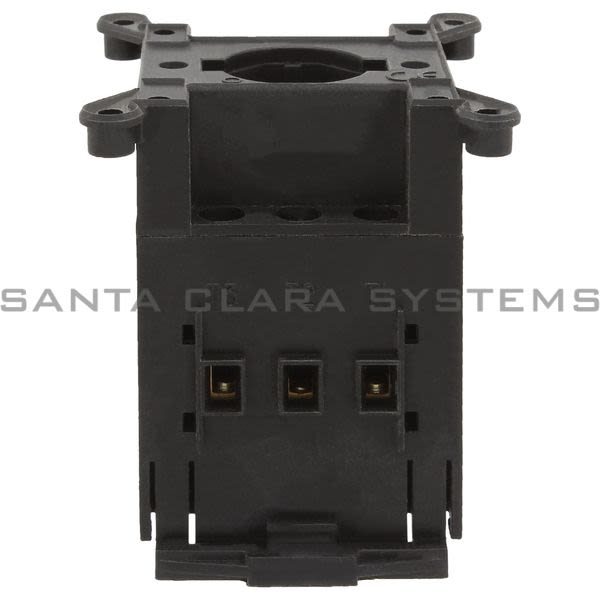

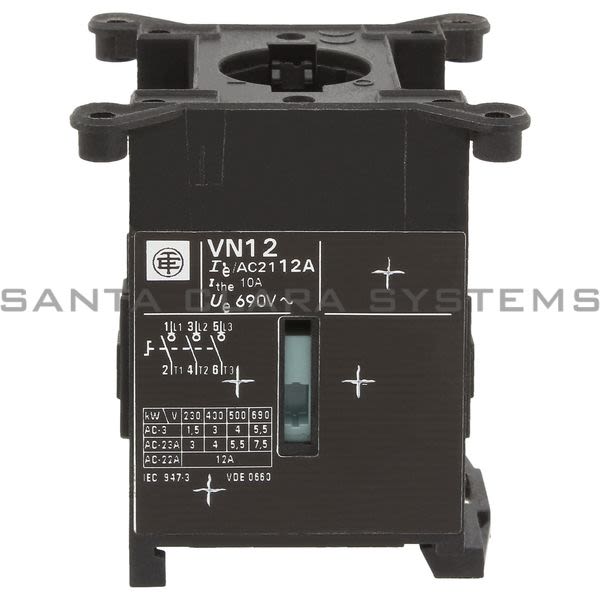

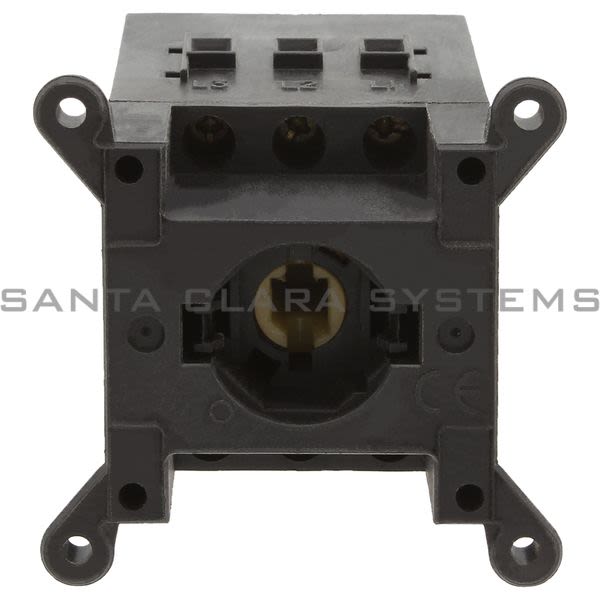

Telemecanique - Switch Body

Product Summary:

Product weight: 0.24 lb(US) (0.11 kg)
IP degree of protection: IP20 conforming to IEC 60529
Standards: IEC 60947-3
Width: 2.2 in (56 mm)
Height: 1.83 in (46.5 mm)

Current response time:

By 5AM PT on Wednesday

Emergency?

*Santa Clara Systems is not a Telemecanique Authorized Distributor.

Description: Switch Body
Product weight: 0.24 lb(US) (0.11 kg)
IP degree of protection: IP20 conforming to IEC 60529
Standards: IEC 60947-3
Width: 2.2 in (56 mm)
Height: 1.83 in (46.5 mm)
Depth: 2.44 in (62 mm)
Protective treatment: TC
[Uimp] rated impulse withstand voltage: 6 kV
Mechanical durability: 50000 cycles
Tightening torque: Power circuit: 61.95 lbf.in (7 N.m) - on screw clamp terminals
Connections - terminals: Power circuit: screw clamp terminals cable 0.01 in² (4 mm²) - cable stiffness: flexible - with cable end cable endPower circuit: screw clamp terminals cable 0.01 in² (4 mm²) - cable stiffness: solid -
Range: TeSys
Mounting support: Symmetrical rail
[Ith] conventional free air thermal current: 12:00 AM
System Voltage: 690 V AC 50/60 Hz
Product name: TeSys Mini-VARIO
Electrical durability: 30000 cycles DC-1...550000 cycles AC-21
[Ie] rated operational current: 8.1 A (AC-23)at 400 V

Poles description: 3P
Breaking capacity: 120 A 400 V AC-21A120 A 400 V AC-22A120 A 400 V AC-23A
Product certifications: ULGLCSA
Product or component type: Switch body
Performance level: Standard
[Ithe] conventional enclosed thermal current: 10:00 AM
Mechanical robustness: Vibrations 10...150 Hz 5 gn IEC 60068-2-6Shocks 11 ms 15 gn IEC 60068-2-27
Contacts type and composition: 3 NO
Ambient air temperature for operation: -4...122 °F (-20...50 °C)
Network type: ACDC
rated operational power in W: 3 kW at 400...415 V (AC-3)4 kW at 500 V (AC-3)1.5 kW at 230...240 V (AC-3)5.5 kW at 500 V (AC-23A)7.5 kW at 690 V (AC-23A)3 kW at 230...240 V (AC-23A)4 kW at 400...415 V (AC-23A)4 kW at 690 V (AC-3)
Fire resistance: 1760 °F (960 °C) conforming to IEC 60695-2-1
Network frequency: 50/60 Hz
Intermittent duty class: 30
Making capacity: 120 A 400 V (AC-21A)120 A 400 V (AC-22A)120 A 400 V (AC-23A)
[Icm] rated short-circuit making capacity: 0.5 kA 400 V at Ipeak
[Icw] rated short-time withstand current: 140 A 400 V during 1 s
Rated conditional short-circuit current: 6 kA 400 V - associated fuse 12 A aM6 kA 400 V - associated fuse 12 A gG
Suitability for isolation: Yes
