P1KL005

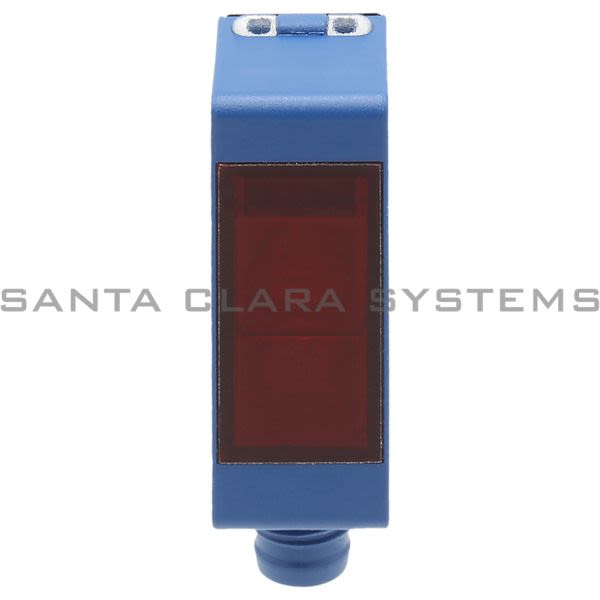

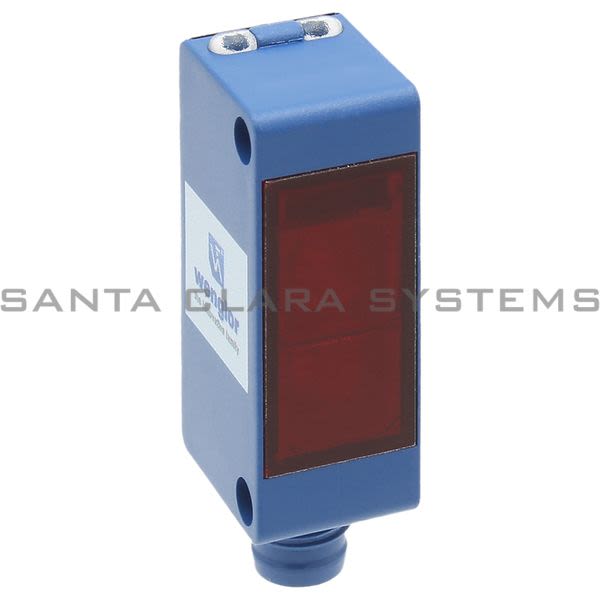

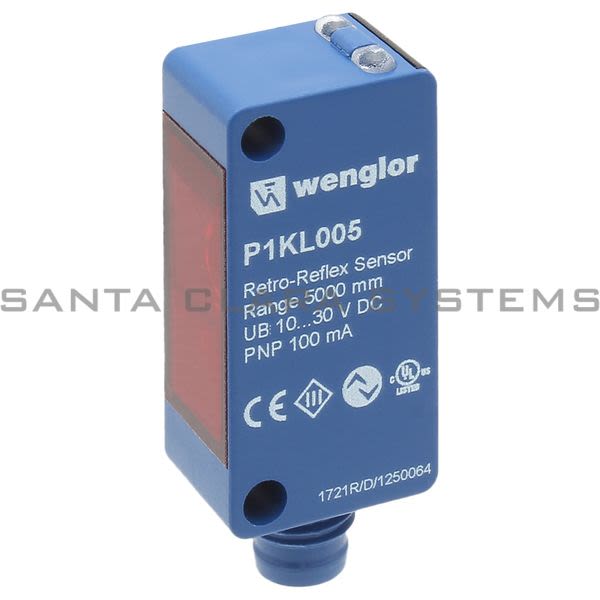

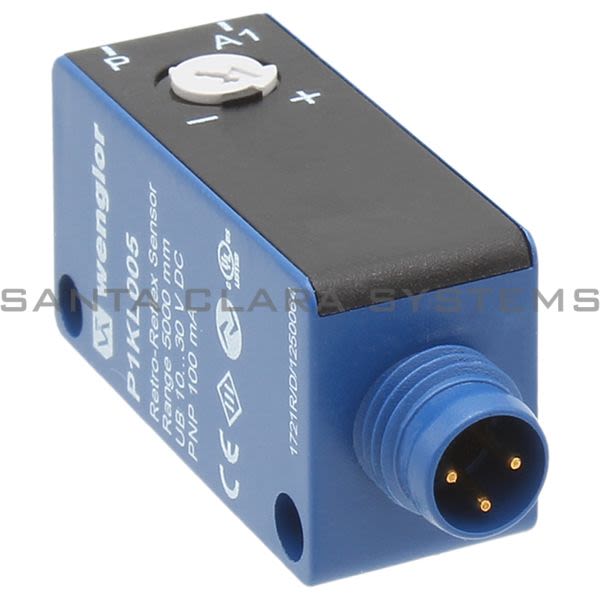

Wenglor - Retro-Reflex Sensor Universal

Product Summary:

Range: 5000 mm
Reference Reflector/Reflector Foil: RQ100BA
Switching Hysteresis: < 10 %
Light Source: Red Light
Polarization Filter: yes

Current response time:

By 5AM PT on Monday

Emergency?

Description: Retro-Reflex Sensor Universal
Range: 5000 mm
Reference Reflector/Reflector Foil: RQ100BA
Switching Hysteresis: < 10 %
Light Source: Red Light
Polarization Filter: yes
Service Life (T = +25 C): 100000 h
Max. Ambient Light: 10000 Lux
Supply Voltage: 10...30 V DC
Supply Voltage with IO-Link: 18...30 V DC
Current Consumption (Ub = 24 V): < 20 mA
Switching Frequency: 2000 Hz
Switching frequency (speed mode): 3500 Hz

Response Time: 0,25 ms
Response time (speed mode): 0,14 ms
Temperature Drift: < 10 %
Temperature Range: -40...60 C
Switching Output Voltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Residual Current Switching Output: < 50 A
Short Circuit and Overload Protection: yes
Reverse Polarity Protection: yes
Lockable: yes
Interface: IO-Link V1.1
Protection Class: III

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1KL005 . Santa Clara Systems carries 3,326 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
