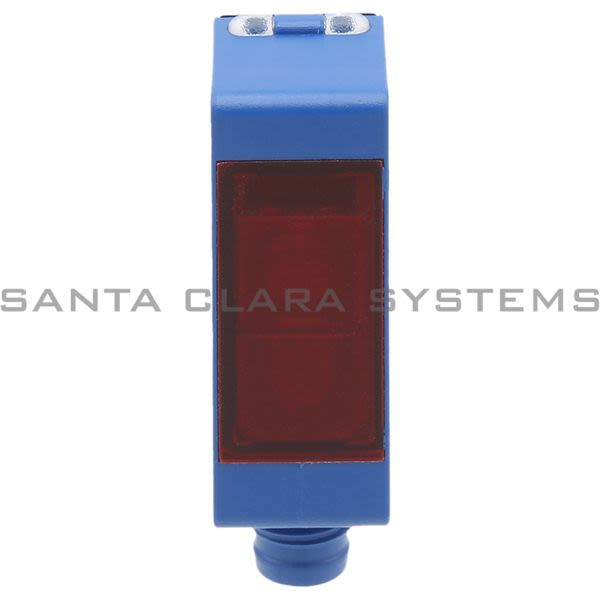

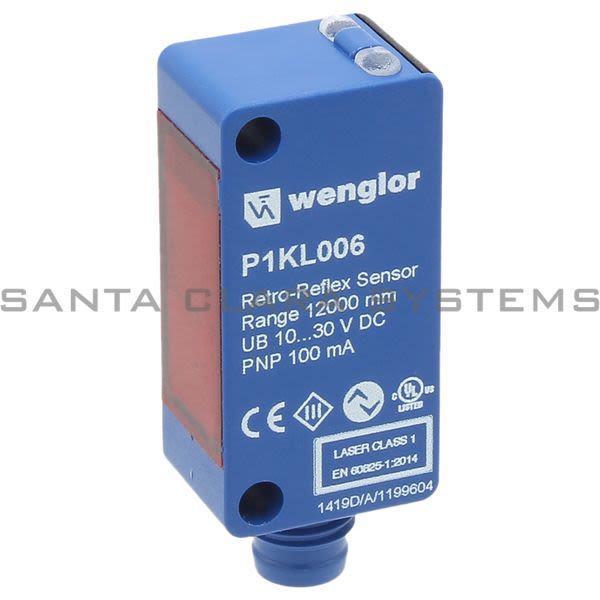

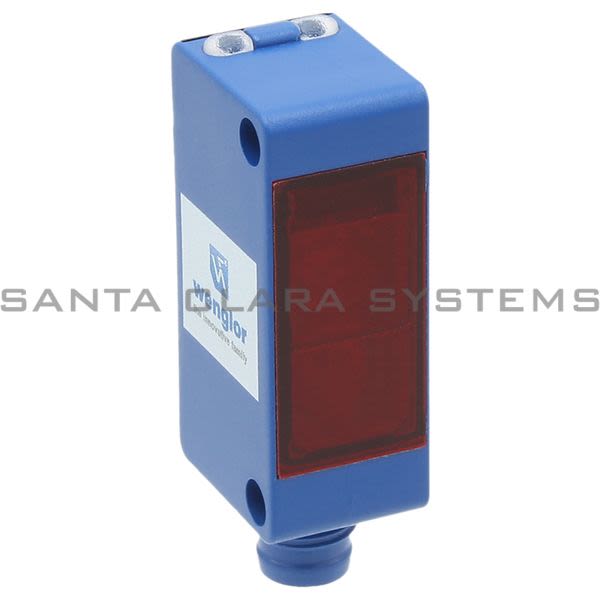

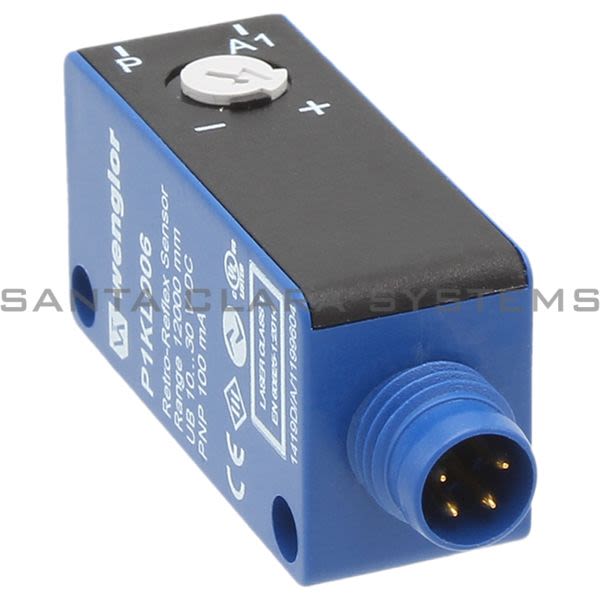

P1KL006
Product Summary:
- Range: 12000 mm
- Reference Reflector/Reflector Foil: RE6151BM
- Switching Hysteresis: < 15 %
- Light Source: Laser (red), collimated
- Wavelength: 680 nm
- Description: Retro-Reflex Sensor Universal
- Range: 12000 mm
- Reference Reflector/Reflector Foil: RE6151BM
- Switching Hysteresis: < 15 %
- Light Source: Laser (red), collimated
- Wavelength: 680 nm
- Polarization Filter: yes
- Service Life (T = +25 C): 100000 h
- Laser Class (EN 60825-1): 1
- Max. Ambient Light: 10000 Lux
- Supply Voltage: 10...30 V DC
- Supply Voltage with IO-Link: 18...30 V DC
- Current Consumption (Ub = 24 V): < 15 mA
- Switching Frequency: 2000 Hz
- Switching frequency (speed mode): 4000 Hz
- Response Time: 0,25 ms
- Response time (speed mode): 0,125 ms
- Temperature Drift: < 10 %
- Temperature Range: -40...60 C
- Switching Output/Switching Current: 100 mA
- Residual Current Switching Output: < 50 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1KL006 . Santa Clara Systems carries 3,326 items from Wenglor.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
