XK89PA7

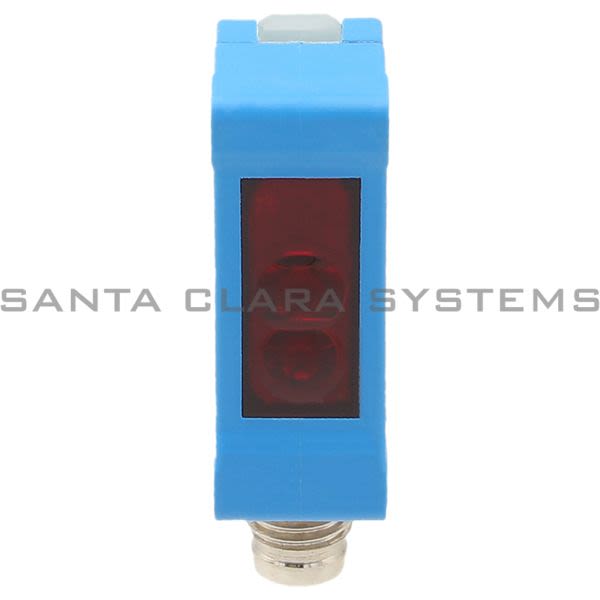

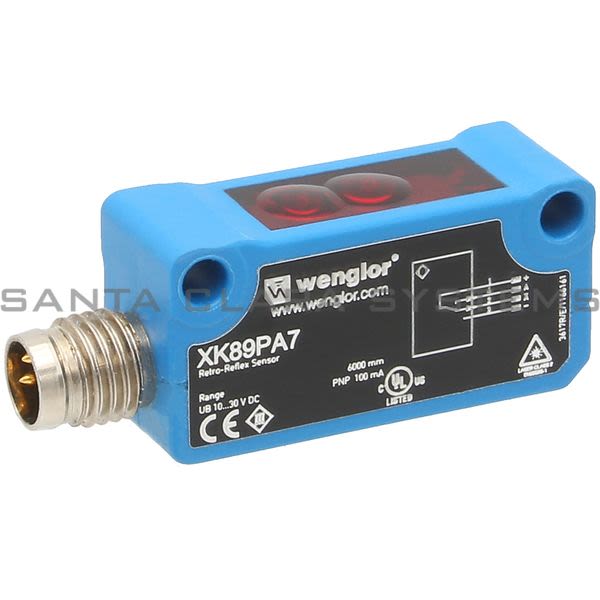

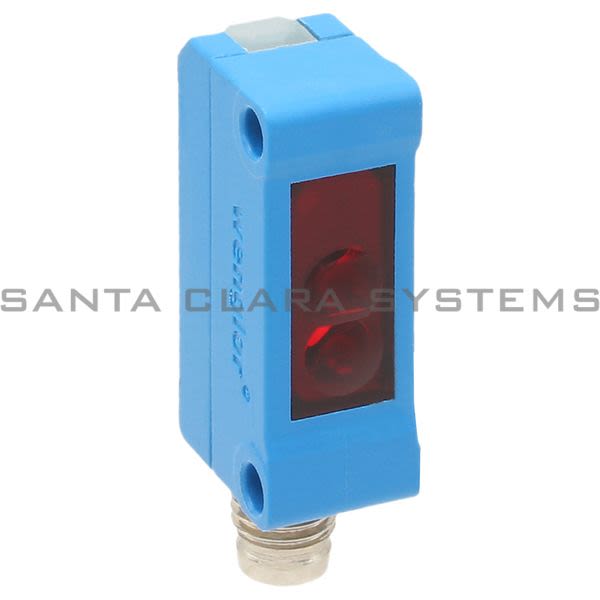

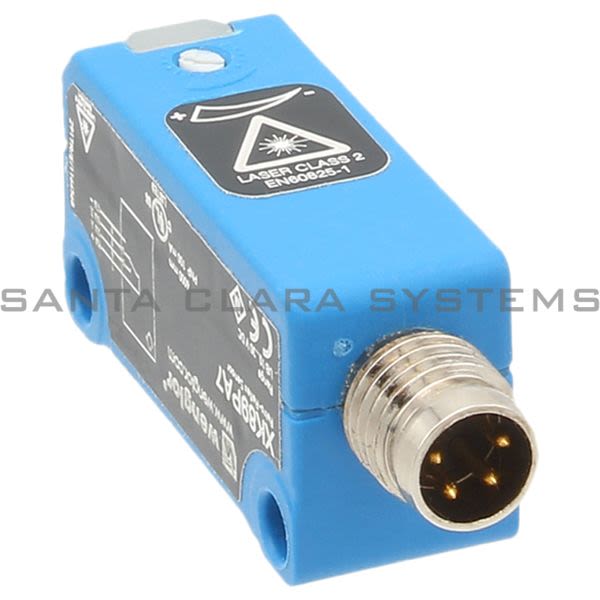

Wenglor - Retro-Reflex Sensor Universal

Product Summary:

Range: 6,000 mm
Reference Reflector/Reflector: RQ100BA
Smallest Recognizable Part: > 100 m
Switching Hysteresis: 15 %
Wavelength: 655 nm

Current response time:

By 5AM PT on Monday

Emergency?

Description: Retro-Reflex Sensor Universal
Range: 6,000 mm
Reference Reflector/Reflector: RQ100BA
Smallest Recognizable Part: > 100 m
Switching Hysteresis: 15 %
Wavelength: 655 nm
Light Source: Laser (red)
Service Life: 100,000 h
Laser Class: 2
Max. Ambient Light: 10,000 Lux
Light Spot Diameter: 1 mm

Focus Distance: 150 ... 300 mm
Supply Voltage: 10 ... 30 V DC
Current Consumption: < 30 mA
Switching Frequency: 3 kHz
Response Time: 166 s
Temperature Drift: < 10 %
Temperature Range: -10 ... 60 C
Switching Output Voltage Drop: < 2.5 V
PNP Switching Output/Switching Current: 100 mA
Connection: M8 1; 4-pin
PNP NC, PNP NO: yes

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on XK89PA7 . Santa Clara Systems carries 3,326 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
