P1KL007

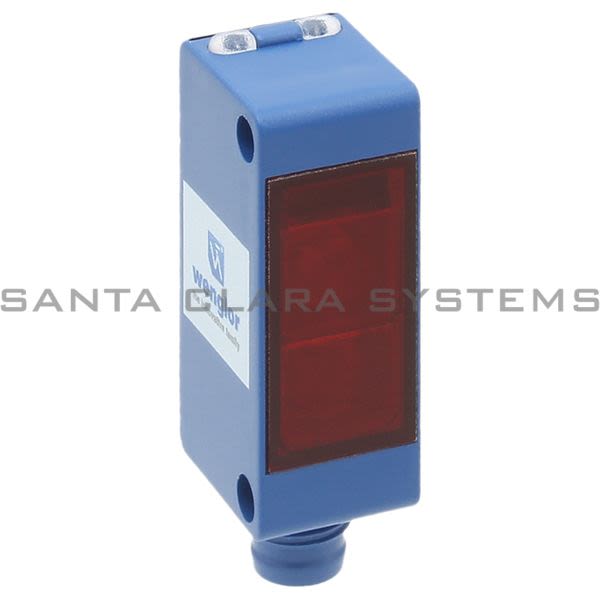

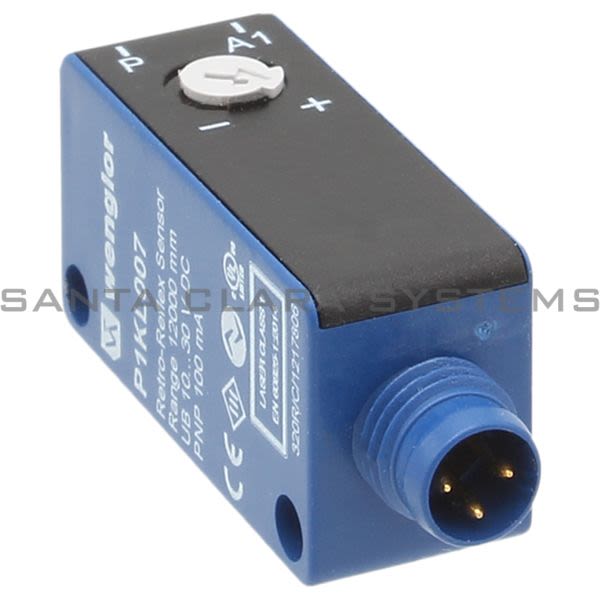

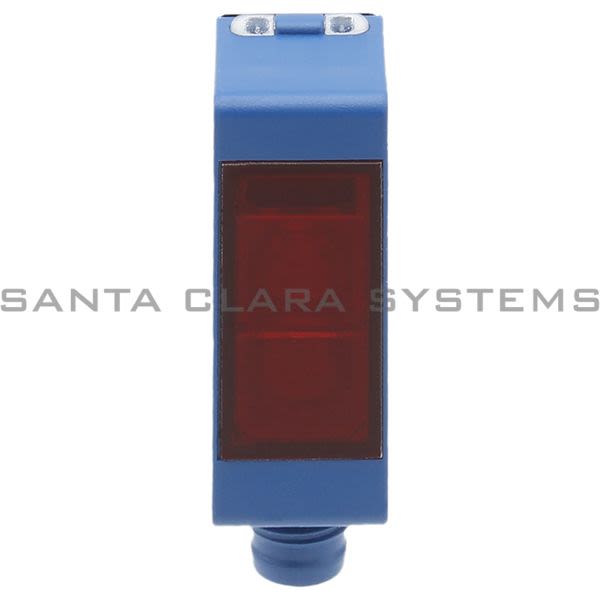

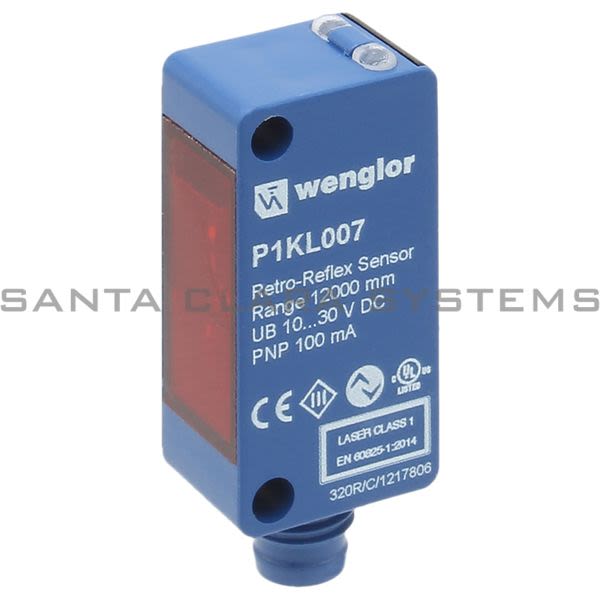

Wenglor - Retro-Reflex Sensor Universal

Product Summary:

Range: 12000 mm
Reference Reflector/Reflector Foil: RE6151BM
Switching Hysteresis: < 15 %
Light Source: Laser (red), collimated
Wavelength: 680 nm

Current response time:

By 5AM PT on Monday

Emergency?

Description: Retro-Reflex Sensor Universal
Range: 12000 mm
Reference Reflector/Reflector Foil: RE6151BM
Switching Hysteresis: < 15 %
Light Source: Laser (red), collimated
Wavelength: 680 nm
Polarization Filter: yes
Service Life (T = +25 C): 100000 h
Laser Class (EN 60825-1): 1
Max. Ambient Light: 10000 Lux
Supply Voltage: 10...30 V DC
Supply Voltage with IO-Link: 18...30 V DC
Current Consumption (Ub = 24 V): < 15 mA
Switching Frequency: 2000 Hz

Switching frequency (speed mode): 4000 Hz
Response Time: 0,25 ms
Response time (speed mode): 0,125 ms
Temperature Drift: < 10 %
Temperature Range: -40...60 C
Switching Output Voltage Drop: < 2 V
Switching Output/Switching Current: 100 mA
Residual Current Switching Output: < 50 A
Short Circuit and Overload Protection: yes
Reverse Polarity Protection: yes
Lockable: yes
Interface: IO-Link V1.1
Protection Class: III
FDA Accession Number: 1710976-001

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1KL007 . Santa Clara Systems carries 3,326 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
