P1KL009

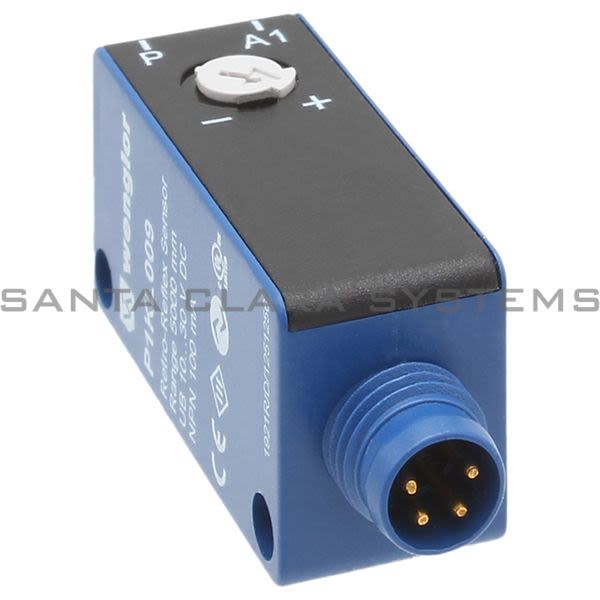

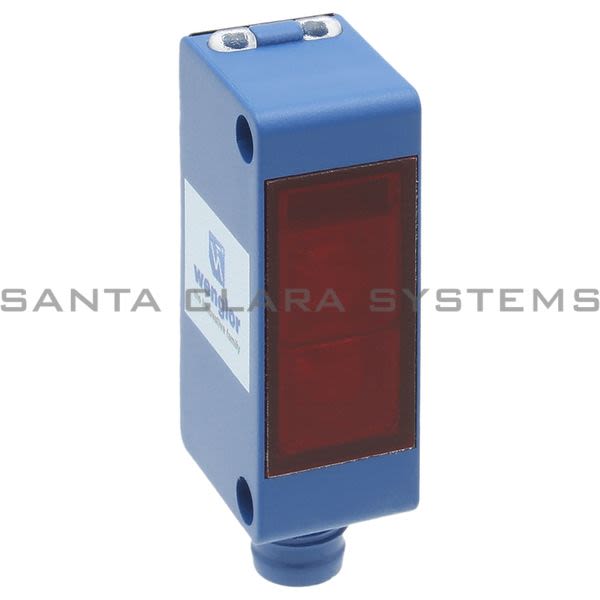

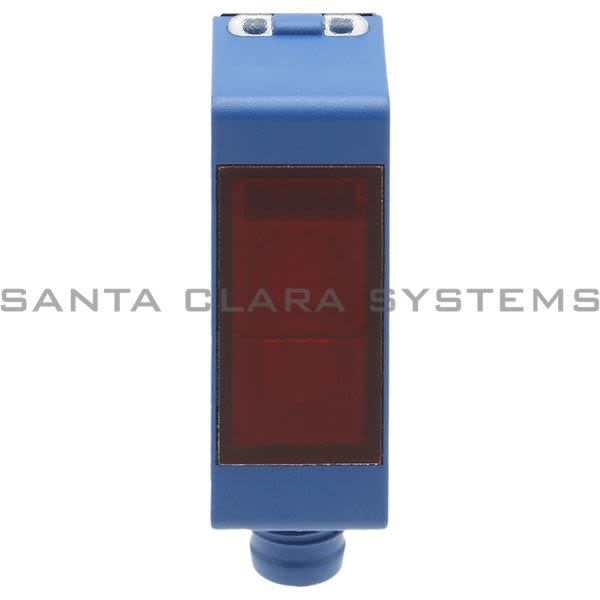

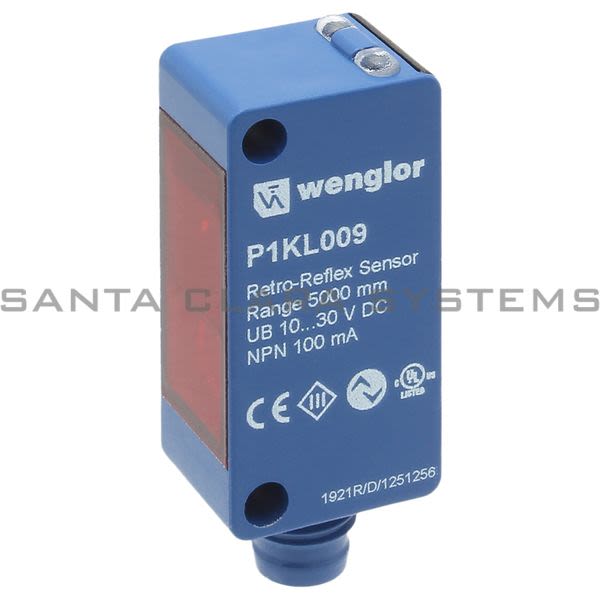

Wenglor - Retro-Reflex Sensor Universal

Product Summary:

Range: 5,000 mm
Reference Reflector/Reflector Foil: RQ100BA
Switching Hysteresis: < 10 %
Light Source: Red Light
Polarization Filter: yes

Current response time:

By 5AM PT on Monday

Emergency?

Description: Retro-Reflex Sensor Universal
Range: 5,000 mm
Reference Reflector/Reflector Foil: RQ100BA
Switching Hysteresis: < 10 %
Light Source: Red Light
Polarization Filter: yes
Service Life (T = +25 C): 100,000 h
Max. Ambient Light: 10,000 Lux
Two-Lens Optic: yes
Supply Voltage: 10 ... 30 V DC

Supply Voltage with IO-Link: 18 ... 30 V DC
Current Consumption (Ub = 24 V): < 20 mA
Switching Frequency: 2,000 Hz
Switching frequency (speed mode): Switching frequency (speed mode)
Response Time: 0.25 ms
Response time (speed mode): 0.14 ms
Temperature Drift: < 10 %
Temperature Range: Ure Range -40 ... 60 C
Switching Output Voltage Drop: < 2 V

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1KL009 . Santa Clara Systems carries 3,326 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
