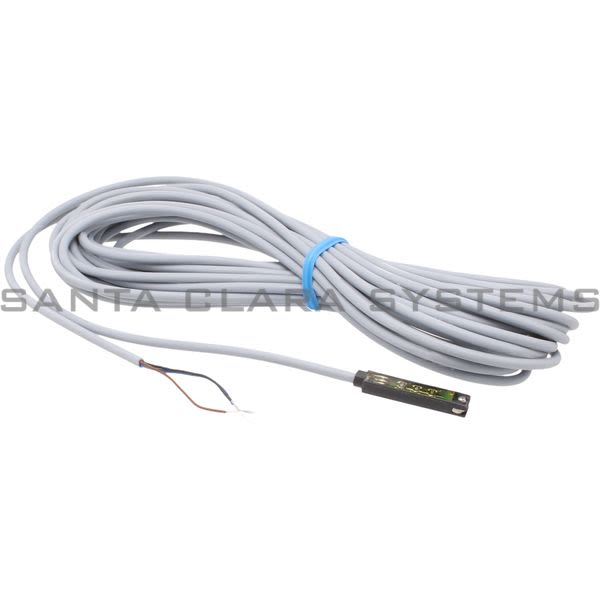

SME-8-O-K-LED-24

Festo - Proximity Sensor

Product Summary:

Ambient temperature: -40 �C ...60 �C
Electrical connection: 3-wire Cable
Type code: SME
Design: for T-slot
Conforms to standard: EN 60947-5-2

Current response time:

10 Minutes 32 Seconds

Description: Proximity Sensor
Ambient temperature: -40 �C ...60 �C
Electrical connection: 3-wire Cable
Type code: SME
Design: for T-slot
Conforms to standard: EN 60947-5-2
Symbol: 991147
Certification: RCM compliance mark
CE marking (see declaration of conformity): As per EU EMC directive
Measuring principle: Magnetic reed
Switching output: Contact-based, bipolar
Switching element function: N/C contact
Reproducibility of switching value: +/- 0.1 mm
On time: 2 ms
Switch-off time: 0.2 ms
Max. output current: 50 mA
Min. switching capacity AC: 1.5 VA
Max. switching capacity DC: 1.5 W
Voltage drop: 2.5 V

Short-circuit protection: no
Overload protection: Not available
Operating voltage range AC: 12 V ...30 V
DC operating voltage range: 12 V ...30 V
Reverse polarity protection: no
Connection outlet orientation: Longitudinal
Cable length: 7.5 m
Material of cable sheath: TPE-U(PUR)
Type of mounting: Clamped in T slot Can be inserted in slot lengthwise
Tightening torque: 0.2 Nm
Product weight: 50 g
Housing material: PET PC High-alloy stainless steel Epoxy resin
Switching status indication: LED yellow
Ambient temperature with flexible cable installation: -5 �C ... 60 �C
Degree of protection: IP67
Insulation voltage: 50 V
Surge resistance: 0.8 kV
Contamination level: 3
