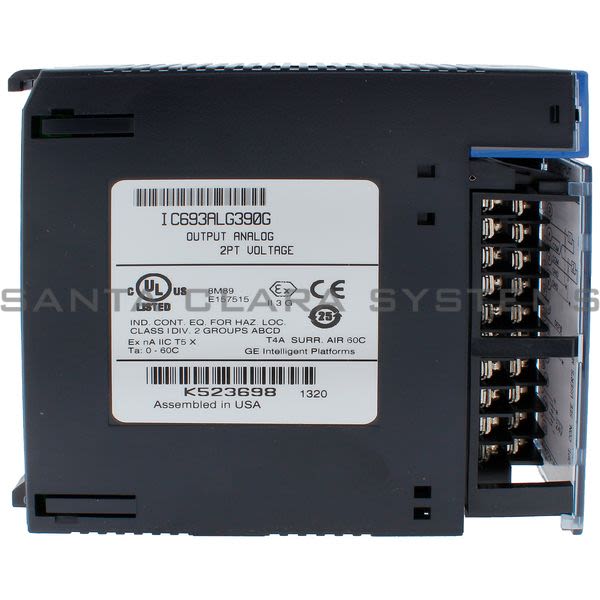

• General Electric IC693 ALG 390 Analog Output Module | Series 90-30 Product Image

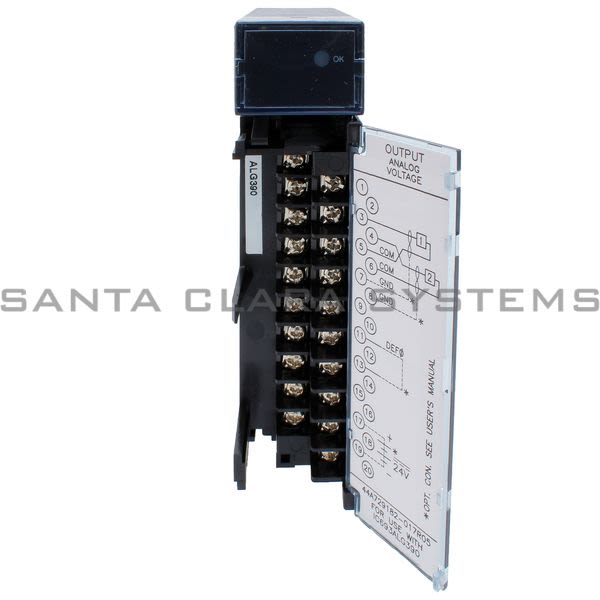

  • General Electric IC693 ALG 390 Analog Output Module | Series 90-30 Product Image

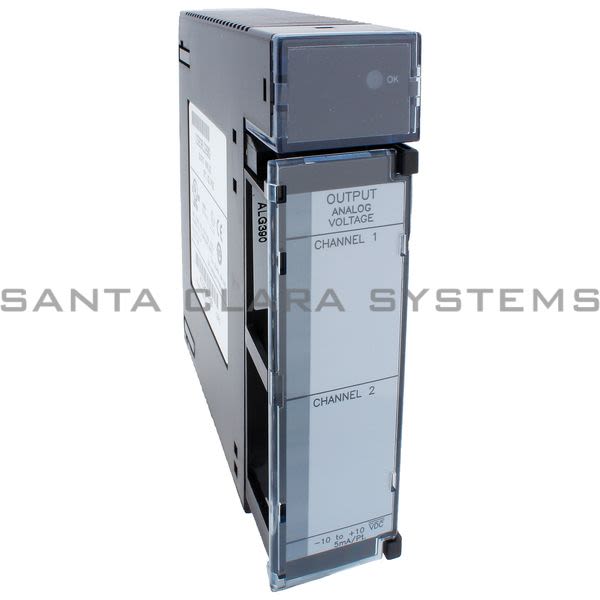

  • General Electric IC693 ALG 390 Analog Output Module | Series 90-30 Product Image

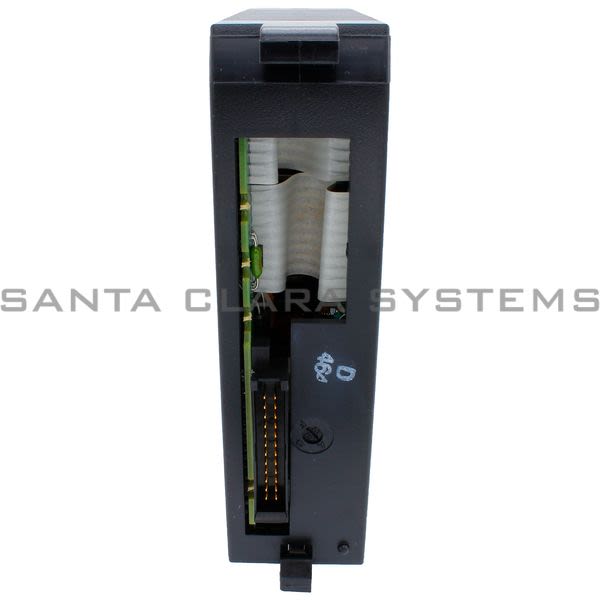

  • General Electric IC693 ALG 390 Analog Output Module | Series 90-30 Product Image
  • General Electric IC693 ALG 390 Barcode

IC693ALG390

Product Summary:

  • Type of Device: Output Analog 2PT Voltage
  • Voltage Range: -10 to +10 volts
  • Calibration: Factory calibrated to 2.5 mV per count
  • External Supply Voltage Range: 18 to 30 VDC
  • External Supply Voltage Ripple: 10%
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Analog Output Module | Series 90-30
  • Type of Device: Output Analog 2PT Voltage
  • Product Description: The 2-Channel Analog Voltage Output module for the Series 90-30 Programmable Logic Controller provides two output channels, each capable of converting 13 bits of binary (digital) data to an analog output for use as required by your application. The Analog Voltage Output module is capable of providing outputs in the range of -10 to +10 volts.
  • Voltage Range: -10 to +10 volts
  • Calibration: Factory calibrated to 2.5 mV per count
  • Supply Voltage (nominal): +24 VDC, from isolated +24 VDC on backplane or user supplied voltage source, and +5 VDC from backplane
  • External Supply Voltage Range: 18 to 30 VDC
  • External Supply Voltage Ripple: 10%
  • Output Loading (maximum): 5 mA (2K ohms minimum resistance)
  • Output Load Capacitance: 2000 pico farads, maximum
  • Isolation: 1500 volts between field side and logic side
  • Internal Power Consumption: 32 mA from +5 volt supply, 120 mA from +24 volt supply (isolated backplane or user supply)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693ALG390 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
