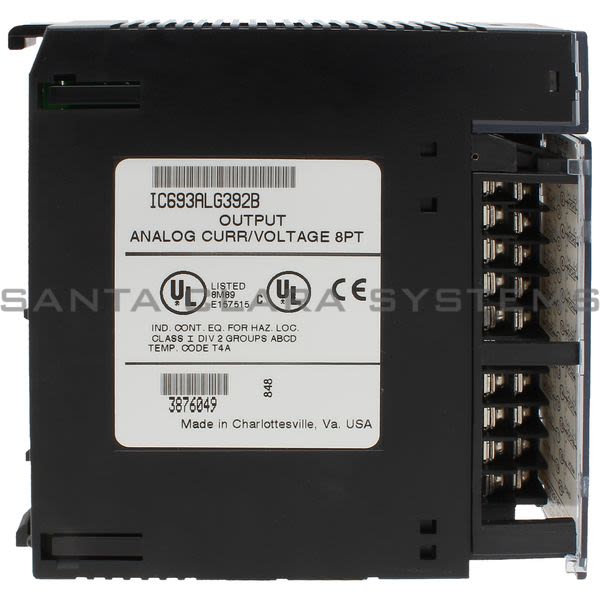

• General Electric IC693 ALG 392 High Density Analog Output Product Image

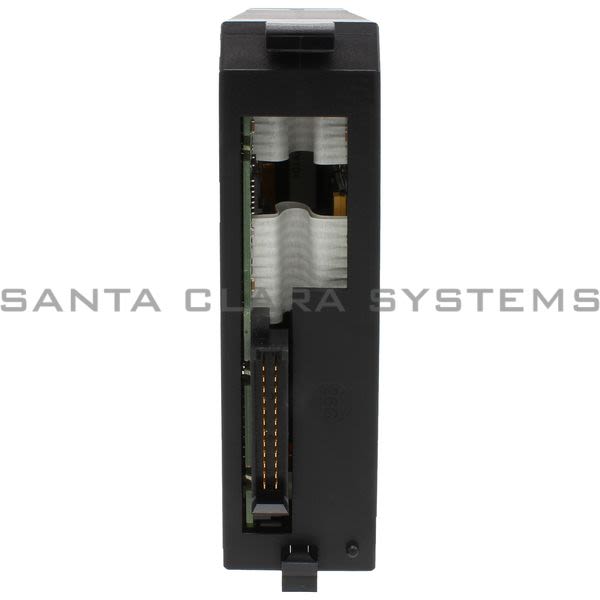

  • General Electric IC693 ALG 392 High Density Analog Output Product Image

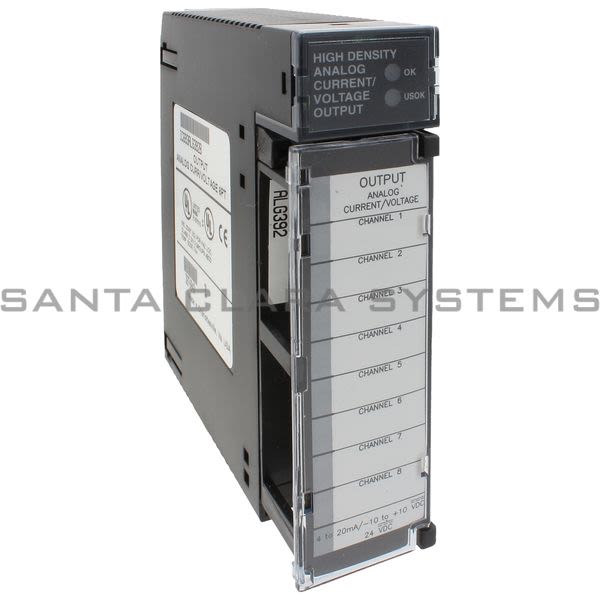

  • General Electric IC693 ALG 392 High Density Analog Output Product Image
  • General Electric IC693 ALG 392 High Density Analog Output Product Image
  • General Electric IC693 ALG 392 Barcode

IC693ALG392

Product Summary:

  • Type of Device: High Density Analog Output (8 Channels)
  • Resolution: 4 to 20mA / 0 to 20mA / 0 to 10V / -10 to +10V
  • Output Current Range: 4 to 20 mA and 0 to 20 mA
  • Output Voltage Range: 0 to 10 V and ?10 V to +10 V
  • User Supply Voltage (nominal): +24 VDC, from user supplied voltage source
Get a Quote

Current response time:

By 5AM PT on Wednesday
  • Description: High Density Analog Output
  • Type of Device: High Density Analog Output (8 Channels)
  • Resolution: 4 to 20mA / 0 to 20mA / 0 to 10V / -10 to +10V
  • Output Current Range: 4 to 20 mA and 0 to 20 mA
  • Output Voltage Range: 0 to 10 V and ?10 V to +10 V
  • User Supply Voltage (nominal): +24 VDC, from user supplied voltage source
  • External Supply Voltage Range: 20 VDC to 30 VDC
  • External Power Supply Voltage Ripple: 10% (maximum)
  • Internal Supply Voltage: +5 VDC from PLC backplane
  • Update Rate: 8 milliseconds (approximate, all eight channels) Determined by I/O scan time, application dependent.
  • Isolated +24 VDC Power: The module must receive its 24 VDC power from an external source, which must be connected directly to the module's terminal block.
  • Output Load Capacitance (current mode): 2000 pF (maximum)
  • Output Load Inductance (current mode): 1 H
  • Power Consumption: 110 mA from +5 VDC PLC backplane supply / 315 mA from +24 VDC user supply
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693ALG392 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
