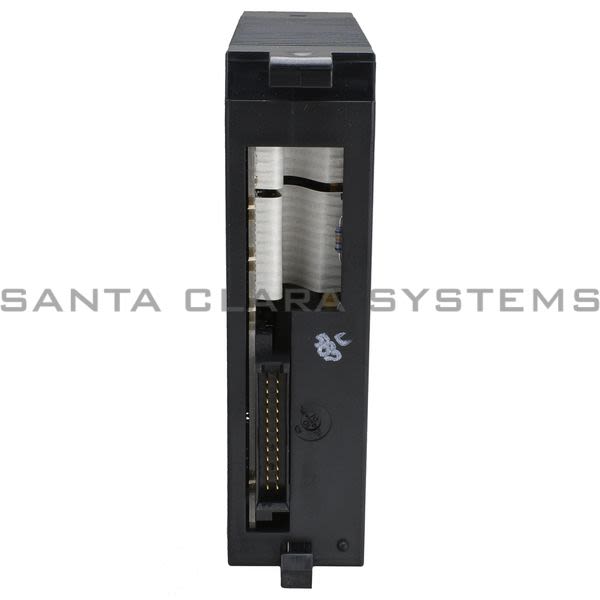

• General Electric IC693 ALG 391 Analog Output Module | Series 90-30 I/O Module | IC693ALG391 Product Image

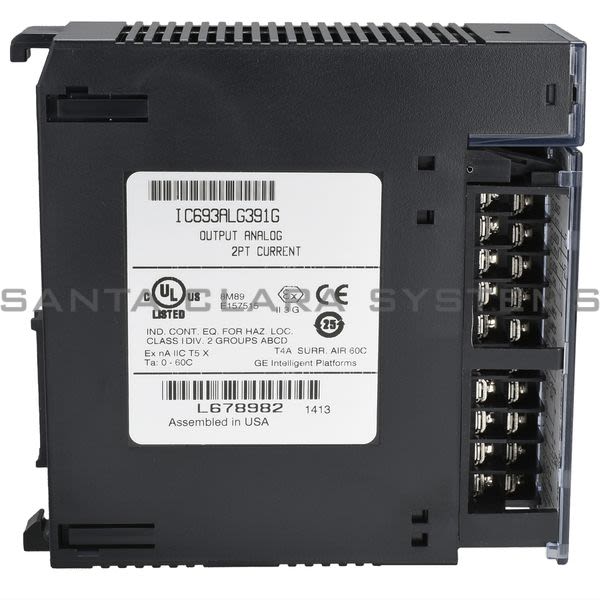

  • General Electric IC693 ALG 391 Analog Output Module | Series 90-30 I/O Module | IC693ALG391 Product Image

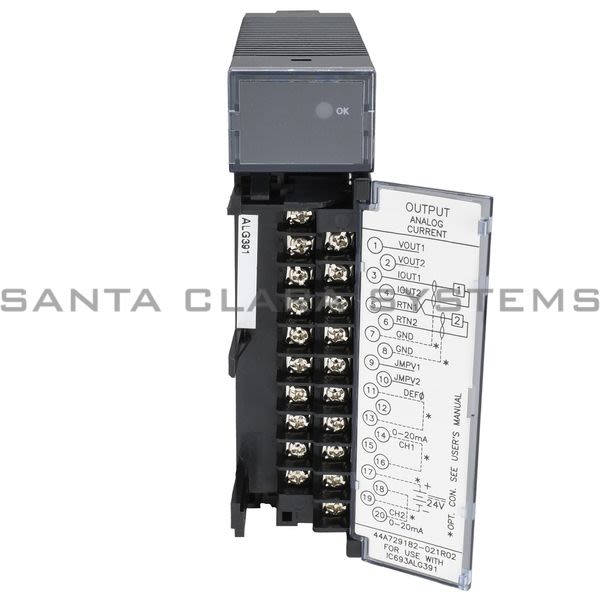

  • General Electric IC693 ALG 391 Analog Output Module | Series 90-30 I/O Module | IC693ALG391 Product Image

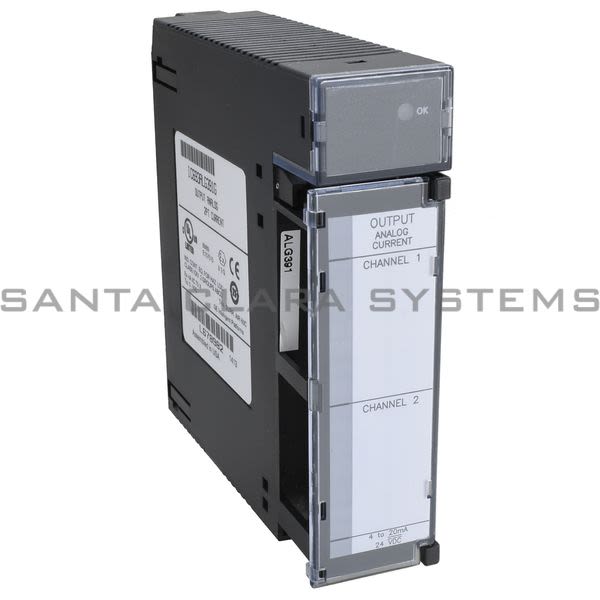

  • General Electric IC693 ALG 391 Analog Output Module | Series 90-30 I/O Module | IC693ALG391 Product Image
  • General Electric IC693 ALG 391 Barcode

IC693ALG391

Product Summary:

  • Type of Device: Analog Current Output - 2 Channel
  • Output Current Range: 4 to 20 mA and 0 to 20 mA
  • Output Voltage Range: 1 to 5 V and 0 to 5 V
  • External Supply Voltage Range: 20 to 30 VDC
  • External Supply Voltage Ripple: 10%
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Analog Output Module | Series 90-30 I/O Module | IC693ALG391
  • Type of Device: Analog Current Output - 2 Channel
  • Product Description: The GE Fanuc 90-30 GEFIC693ALG391 is a 2-Channel Analog Current Output module provides two output channels, each capable of converting 12 bits of binary (digital) data to an analog output for use as required by your application. GE Fanuc 90-30 IC693ALG391 is capable of providing outputs in the range of 0 to 20 mA. The GE Fanuc 90-30 IC693ALG391 also has two output ranges each of which can be programed individually.
  • Output Current Range: 4 to 20 mA and 0 to 20 mA
  • Output Voltage Range: 1 to 5 V and 0 to 5 V
  • Supply Voltage (nominal): +24 VDC, from isolated +24 VDC on backplane or user supplied voltage source, and +5 VDC from backplane
  • External Supply Voltage Range: 20 to 30 VDC
  • External Supply Voltage Ripple: 10%
  • Update Rate: 5 msec (approximate, both channels) Determined by I/O scan time, and is application dependent.
  • Maximum Compliance Voltage: 25 V
  • User Load (current mode): 0 to 850 ohms
  • Output Load Capacitance (current mode): 2000 pF
  • Output Load Inductance (current mode): 1 H
  • Maximum Output Loading (voltage mode): 5 mA (2K ohms minimum resistance) (2000 pF maximum capacitance)
  • Isolation: 1500 volts between field and logic side
  • Internal Power Consumption: 30 mA from +5V supply 215 mA from Isolated +24 VDC backplane supply or user supply
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693ALG391 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
