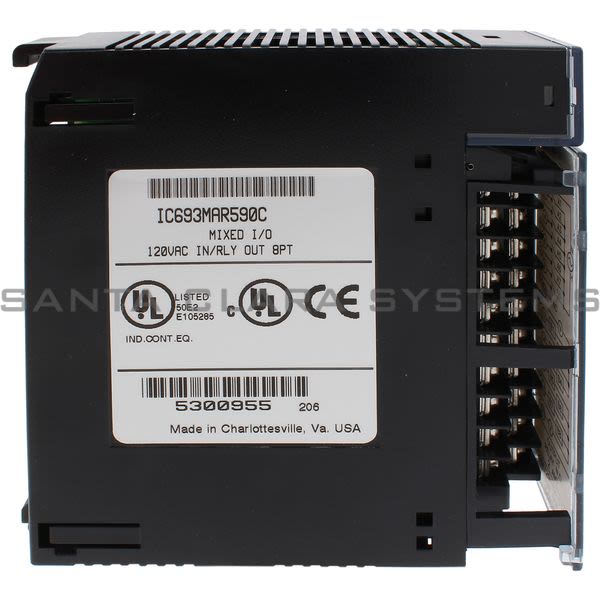

• General Electric IC693 MAR 590 I/O Module Product Image

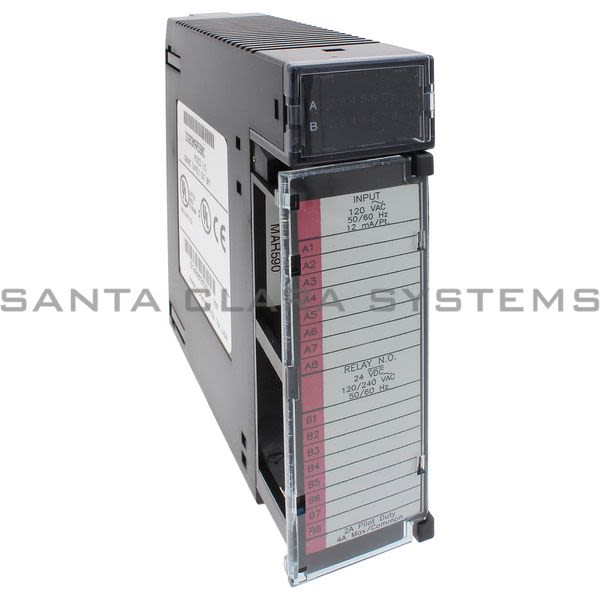

  • General Electric IC693 MAR 590 I/O Module Product Image

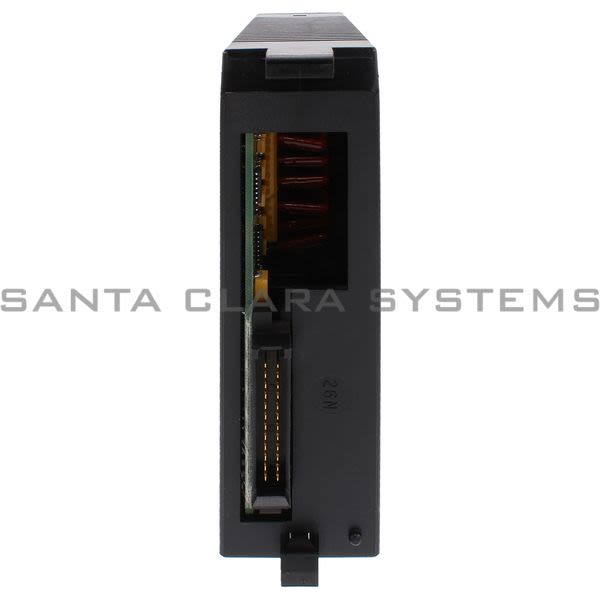

  • General Electric IC693 MAR 590 I/O Module Product Image
  • General Electric IC693 MAR 590 I/O Module Product Image
  • General Electric IC693 MAR 590 Barcode

IC693MAR590

Product Summary:

  • Type of Device: 120 Volt AC Input, Relay Output, 8 Inputs/8 Outputs
  • Rated Voltage: 120 volts AC
  • Input Voltage range: 0 to 132 volts AC
  • Inputs per Module: 8 (one group of eight inputs)
  • Input Current: 12 mA (typical) at rated voltage
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: I/O Module
  • Type of Device: 120 Volt AC Input, Relay Output, 8 Inputs/8 Outputs
  • Product Description: The 120 volt AC Input/Relay Output module GE Fanuc 90-30 IC693MAR590 provides 8 input points with one common power input terminal, and 8 normally-open relay circuits in the same module. The input circuits on the GE Fanuc 90-30 IC693MAR590 are reactive resistor/capacitor) inputs and are arranged as one group of 8 inputs. The GE Fanuc 90-30 IC693MAR590 can be installed in any I/O slot of a 5 or 10-slot baseplate in a Series 90-30 PLC system.
  • Rated Voltage: 120 volts AC
  • Input Voltage range: 0 to 132 volts AC
  • Inputs per Module: 8 (one group of eight inputs)
  • Isolation: 1500 volts RMS between field and logic side, 500 volts RMS between inputs
  • Input Current: 12 mA (typical) at rated voltage
  • On-State Voltage: 74 to 132 volts AC
  • Off-State Voltage: 0 to 20 volts AC
  • On-State Current: 6 mA (minimum)
  • Off-State Current: 2.2 mA (maximum)
  • On Response Time: 30 ms typical
  • Off Response Time: 45 ms typical
  • Outputs per Module: 8 (two groups of four outputs each)
  • Minimum Load: 10 mA
  • Maximum Inrush: 5 amps
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on IC693MAR590 . Santa Clara Systems carries 5,875 items from General Electric.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
