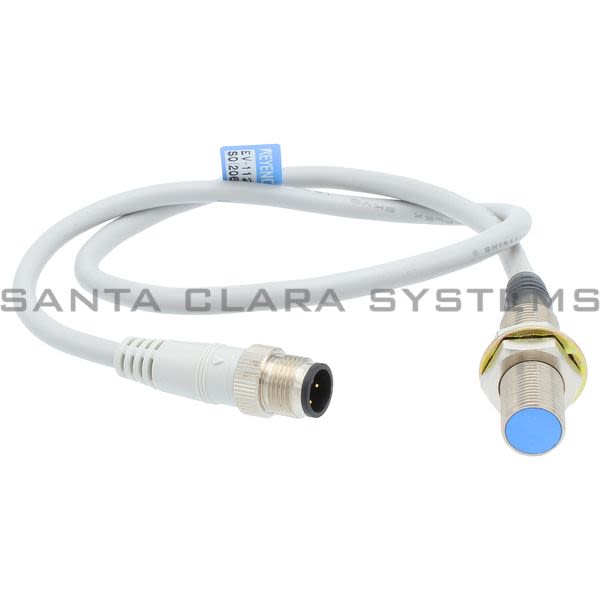

• Keyence EV-112M-SO-2062 Product Image

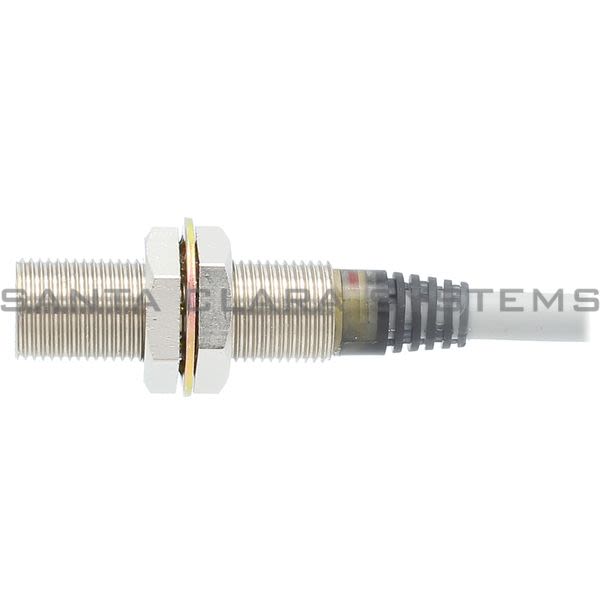

  • Keyence EV-112M-SO-2062 Product Image

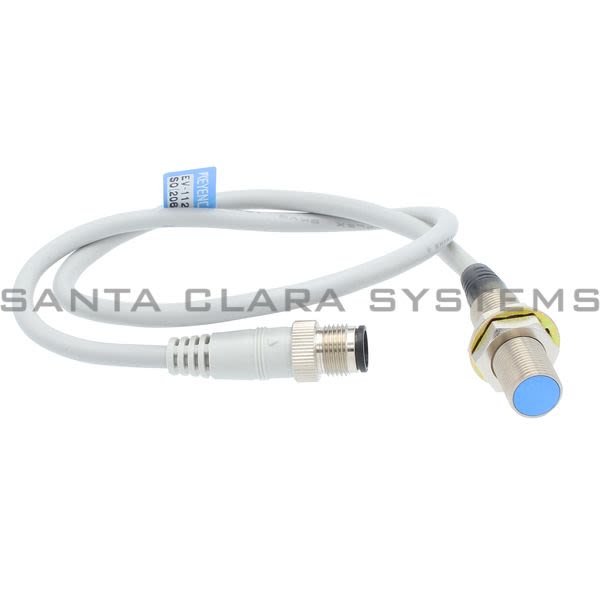

  • Keyence EV-112M-SO-2062 Product Image

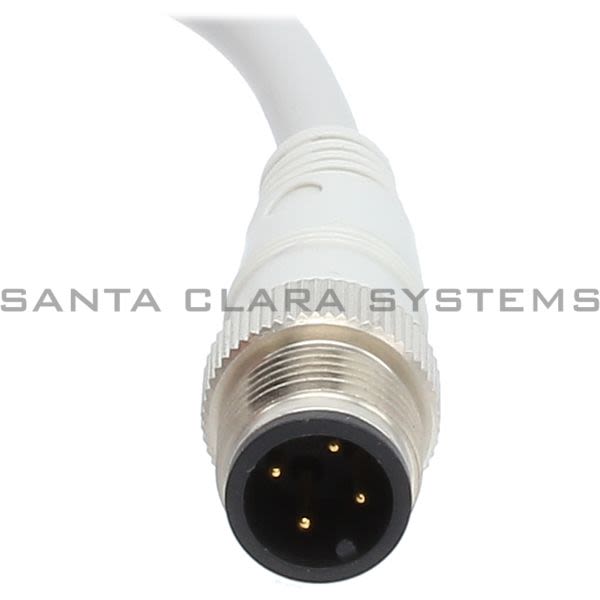

  • Keyence EV-112M-SO-2062 Product Image
  • Keyence EV-112M-SO-2062 Barcode

EV-112M-SO-2062

Product Summary:

  • Type: Shielded
  • Shape: M12
  • Detecting distance: 2.5 mm 0.10" 10%
  • Standard target (iron, t=1 mm 0.04"): 12 x 12 mm 0.47" x 0.47"
  • Hysteresis: 10% max. of detecting distance
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description:
  • Cable length: 500 mm19.685"
  • Rating - Power voltage: 12 to 24 VDC
  • Rating - Current consumption (leakage current): Current consumption (leakage current): 1.0 mA max., Residual voltage: 3.6 V max. (with 2-m 6.6' cable)
  • Rating - Residual voltage: Residual voltage: 3.6 V max. (with 2-m 6.6' cable)
  • Environmental resistance - Enclosure rating: IP67
  • Environmental resistance - Operating temperature range: -25 to +80C -13 to 176F, No freezing
  • Environmental resistance - Operating ambient humidity: 35 to 95%RH (no condensation)
  • Case material: Nickel-plated brass
  • Weight: approx 55 g
  • Type: Shielded
  • Shape: M12
  • Detecting distance: 2.5 mm 0.10" 10%
  • Detectable object: Ferrous metals (see Characteristics for nonferrous metals)
  • Standard target (iron, t=1 mm 0.04"): 12 x 12 mm 0.47" x 0.47"
  • Hysteresis: 10% max. of detecting distance
  • Response frequency: 600 Hz
  • Operation mode: N.O.
  • Temperature characteristics: 10% max. of detecting distance at 23C 73.4F, within -25 to +70C -13 to +158F
  • Control output (switching capacity): 5 to 200 mA
  • Protection circuit: Reversed polarity, short-circuit, surge voltage
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EV-112M-SO-2062 . Santa Clara Systems carries 1,475 items from Keyence.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
